Caution / Notice / Hint

NOTE:
  • Use gloves to avoid damage and getting fingerprints on the combination meter glass surface and combination meter assembly surfaces.
  • Be sure not to touch the meter LCD.
  • Because LED components are used for all of warning lights and indicator lights, they are not removable from the combination meter assembly.


COMPONENTS (DISASSEMBLY)

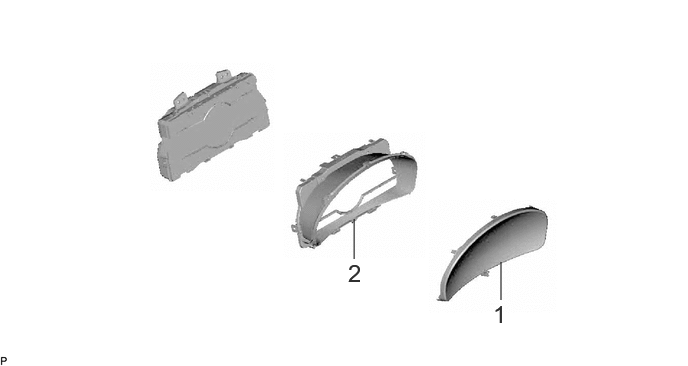

Fig 1: Combination Meter Disassembly Components
GTY1050039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 COMBINATION METER GLASS 83138G - - -
2 COMBINATION METER COVER 83136A - - -
