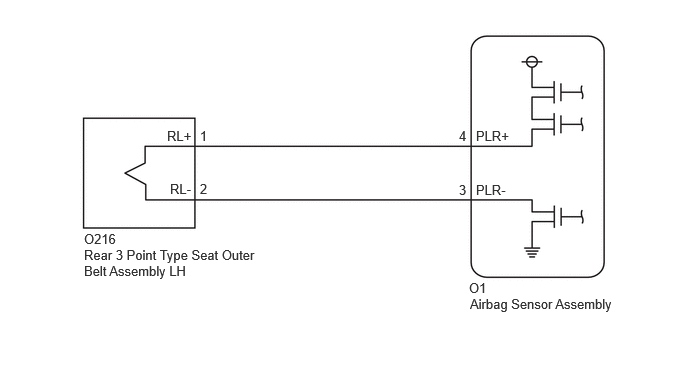

DTC B0073-13: Second Row Left Seat Belt Pretensioner Deployment Control Circuit Open [11/2022 - ]: Wiring Diagram

GTY1109734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
