Parts Location [11/2018 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

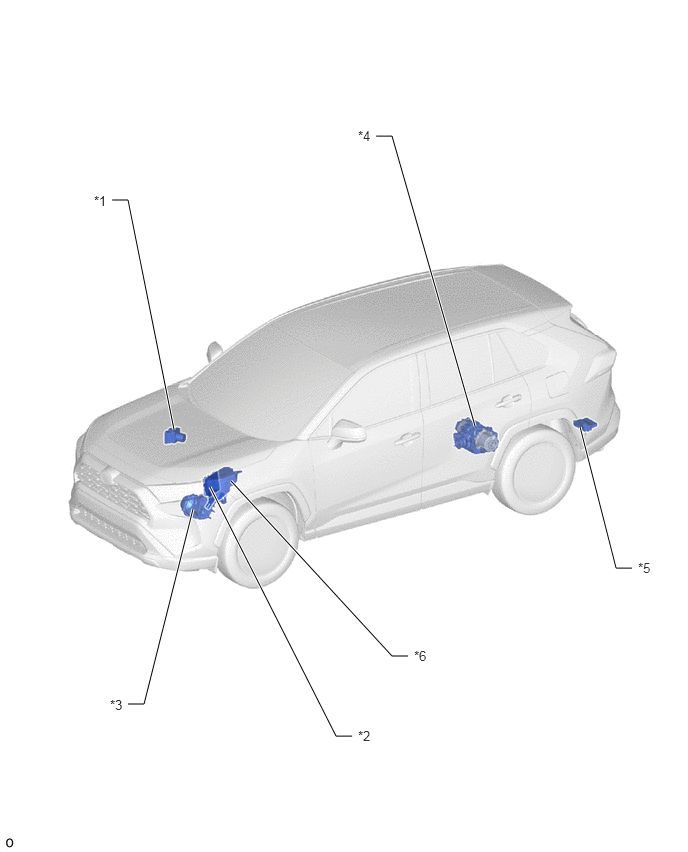

GTY850767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*2	ECM
*3	TRANSFER ASSEMBLY - FRONT 4WD LINEAR SOLENOID	*4	REAR DIFFERENTIAL CARRIER ASSEMBLY - REAR 4WD LINEAR SOLENOID
*5	4WD ECU ASSEMBLY	*6	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - 4WD FUSE

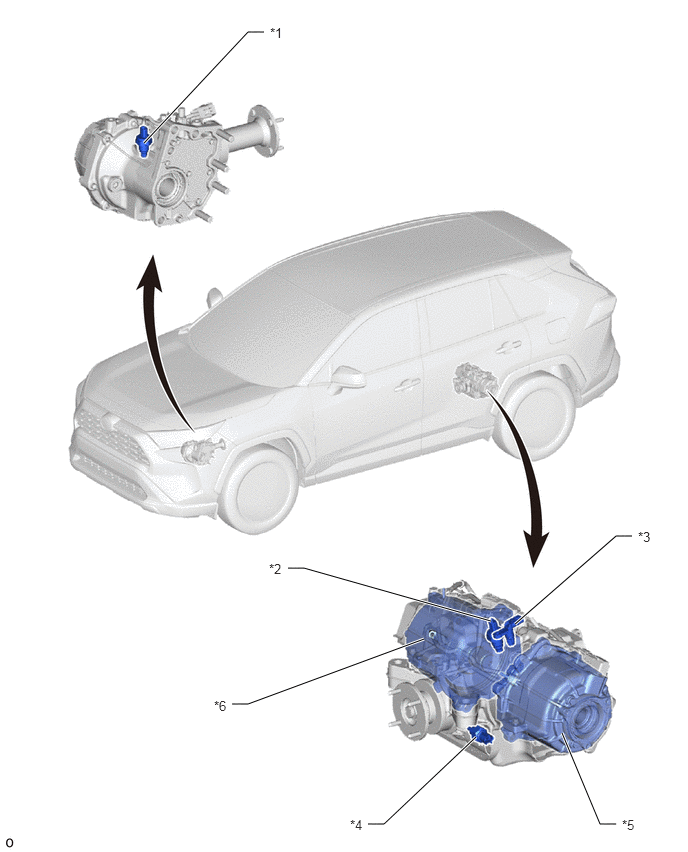

GTY856016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 4 WHEEL DRIVE POSITION SWITCH	*2	NO. 2 4 WHEEL DRIVE POSITION SWITCH
*3	TRANSMISSION REVOLUTION SENSOR	*4	TEMPERATURE SENSOR
*5	ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH - REAR 4WD LINEAR SOLENOID LH	*6	ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY RH - REAR 4WD LINEAR SOLENOID RH

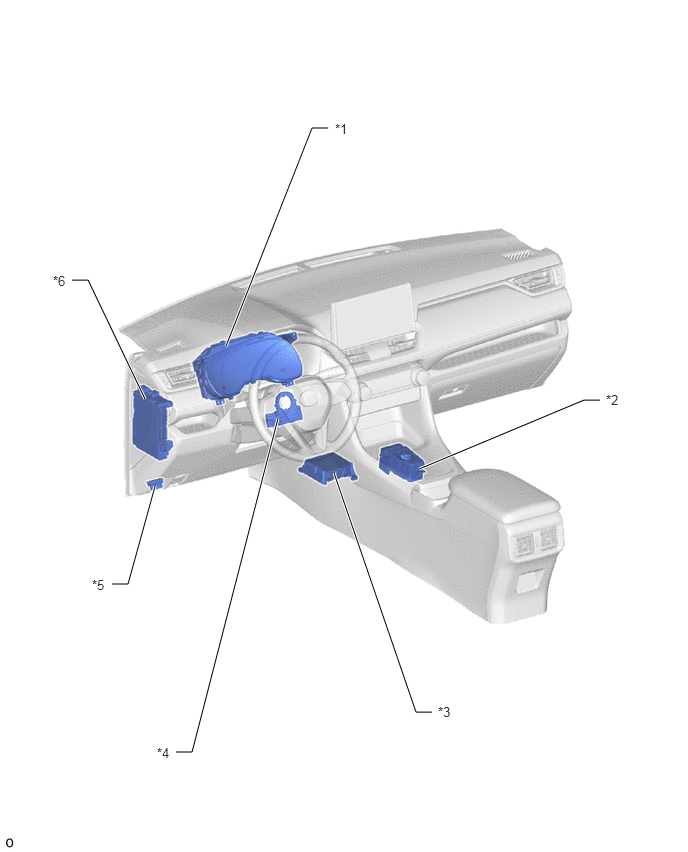

GTY867245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY - AWD WARNING (MULTI-INFORMATION DISPLAY)	*2	MULTI-TERRAIN SELECT SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)
*3	YAW RATE AND ACCELERATION SENSOR (AIRBAG ECU ASSEMBLY)	*4	STEERING SENSOR
*5	DLC3	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE
