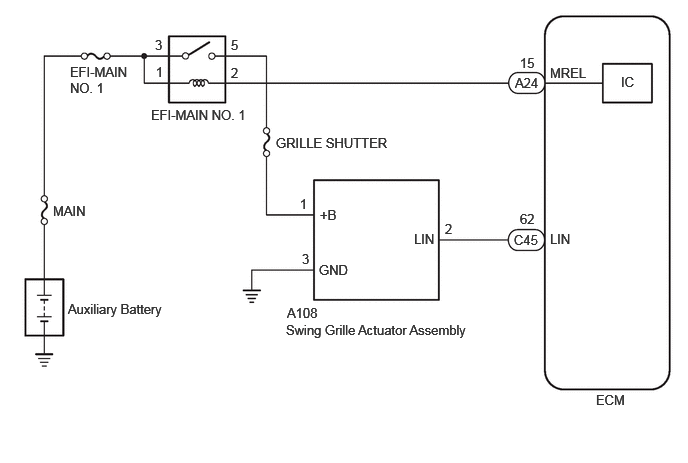

DTC P15AD-87: Active Grille Air Shutter "A" Missing Message [12/2021 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1106733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
