Open in Bus 5 Main Bus Line [10/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN BUS WIRE (NO. 1 CAN JUNCTION CONNECTOR)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the No. 1 CAN junction connector.
      GTY913846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 CAN Junction Connector)      		 *b to No. 7 CAN Junction Connector
      *c to No. 5 CAN Junction Connector - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      G96-1 (CANH) - G96-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 7 CAN junction connector
      G96-3 (CANH) - G96-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 5 CAN junction connector

      Result

      Result Proceed to
      OK A
      NG (No. 5 CAN junction connector CAN main wire) B
      NG (No. 7 CAN junction connector CAN main wire) C

    Result:

    A

    REPLACE NO. 1 CAN JUNCTION CONNECTOR

    Result:

    C

    See step  4

    Result:

    B

    See step  2

  2. CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR)
    1. Reconnect the G96 No. 1 CAN junction connector.
    2. Disconnect the No. 5 CAN junction connector.
      GTY913844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 5 CAN Junction Connector)      		 *b to No. 1 CAN Junction Connector
      *c to Central Gateway ECU (Network Gateway ECU) - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      G105-9 (CANH) - G105-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 1 CAN junction connector
      G105-11 (CANH) - G105-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Central gateway ECU (network gateway ECU)

      Result

      Result Proceed to
      OK A
      NG (Central gateway ECU [network gateway ECU] CAN main wire) B
      NG (No. 1 CAN junction connector CAN main wire) C

    Result:

    A

    REPLACE NO. 5 CAN JUNCTION CONNECTOR

    Result:

    C

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION CONNECTOR)

    Result:

    B

    See step  3

  3. CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 5 CAN JUNCTION CONNECTOR)
    1. Reconnect the G105 No. 5 CAN junction connector.
    2. Disconnect the central gateway ECU (network gateway ECU) connector.
      GTY900938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU [Network Gateway ECU])
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G72-15 (CA5H) - G72-16 (CA5L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 5 CAN JUNCTION CONNECTOR)

  4. CHECK FOR OPEN IN CAN BUS WIRE (NO. 7 CAN JUNCTION CONNECTOR)
    1. Reconnect the G96 No. 1 CAN junction connector.
    2. Disconnect the No. 7 CAN junction connector.

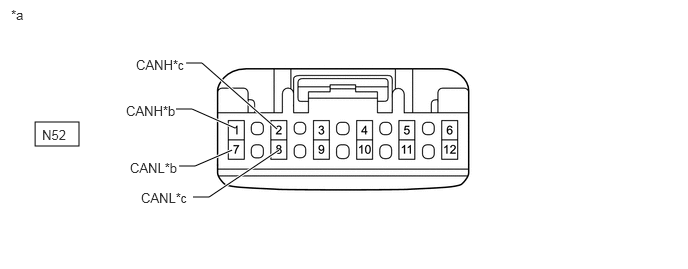

      GTY850959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)      		 *b to No. 1 CAN Junction Connector
      *c to Combination Meter Assembly - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      N52-1 (CANH) - N52-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 1 CAN junction connector
      N52-2 (CANH) - N52-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Combination meter assembly

      Result

      Result Proceed to
      OK A
      NG (No. 1 CAN junction connector CAN main wire) B
      NG (Combination meter assembly CAN main wire) C

    Result:

    A

    REPLACE NO. 7 CAN JUNCTION CONNECTOR

    Result:

    B

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION CONNECTOR)

    Result:

    C

    See step  5

  5. CHECK FOR OPEN IN CAN BUS WIRE (COMBINATION METER ASSEMBLY - NO. 7 CAN JUNCTION CONNECTOR)
    1. Reconnect the N52 No. 7 CAN junction connector.
    2. Disconnect the combination meter assembly connector.

      for 7 Inch Multi-information Display Type

      GTY856828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Combination Meter Assembly)

      for 12.3 Inch Multi-information Display Type

      GTY1113171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Combination Meter Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR 7 INCH MULTI-INFORMATION DISPLAY TYPE

      Tester Connection Condition Specified Condition
      G18-9 (CANH) - G18-25 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      FOR 12.3 INCH MULTI-INFORMATION DISPLAY TYPE

      Tester Connection Condition Specified Condition
      G140-31 (CANH) - G140-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 7 CAN JUNCTION CONNECTOR)
