Section 78 (Can Communication System (HV) - Circuit Tests (5 Of 6))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Check Bus 4 Lines for Short Circuit [08/2020 - 12/2021]
>>
Wiring Diagram

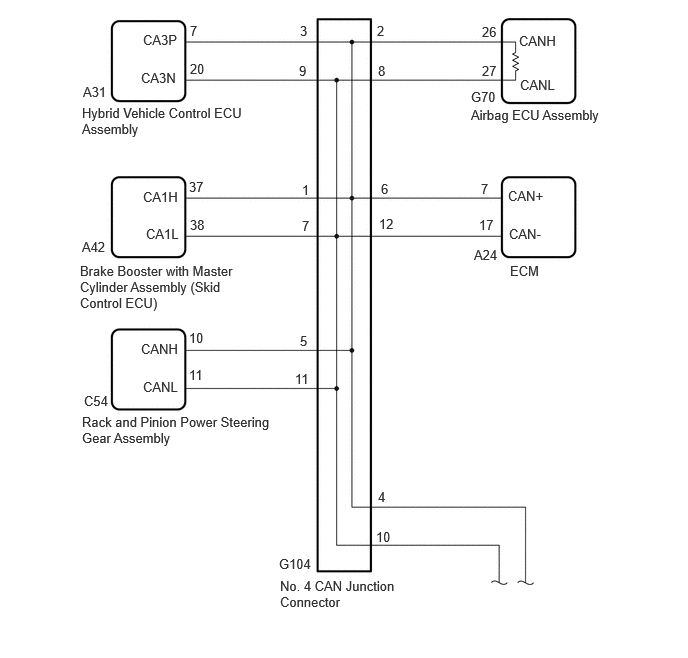

Check Bus 4 Lines for Short Circuit [08/2020 - 12/2021]: Wiring Diagram
