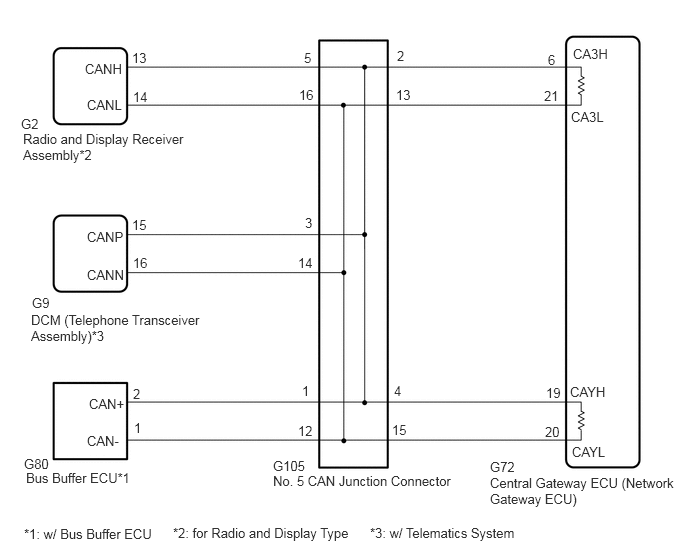

Check Bus 3 Line for Short to GND [02/2019 - 10/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

GTY874274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
