Open in Bus 1 Main Bus Line [02/2019 - 12/2021]: Procedure
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 2 CAN JUNCTION CONNECTOR)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the No. 2 CAN junction connector.
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector)*b to No. 8 CAN Junction Connector *c to Central Gateway ECU (Network Gateway ECU) - - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Connected to G102-3 (CANH) - G102-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 8 CAN junction connector G102-8 (CANH) - G102-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Central gateway ECU (network gateway ECU) Result
Result Proceed to OK A NG (Central gateway ECU [network gateway ECU] CAN main wire) B NG (No. 8 CAN junction connector CAN main wire) C
Result:
A
REPLACE NO. 2 CAN JUNCTION CONNECTOR
Result:
C
See step 3
Result:
B
See step 2
- CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 2 CAN JUNCTION CONNECTOR)
- Reconnect the G102 No. 2 CAN junction connector.
- Disconnect the central gateway ECU (network gateway ECU) connector.
*a Front view of wire harness connector
(to Central Gateway ECU [Network Gateway ECU]) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G72-23 (CA1H) - G72-8 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021]
Result:
NG
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 2 CAN JUNCTION CONNECTOR)
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 8 CAN JUNCTION CONNECTOR)
- Reconnect the G102 No. 2 CAN junction connector.
- Disconnect the No. 8 CAN junction connector.

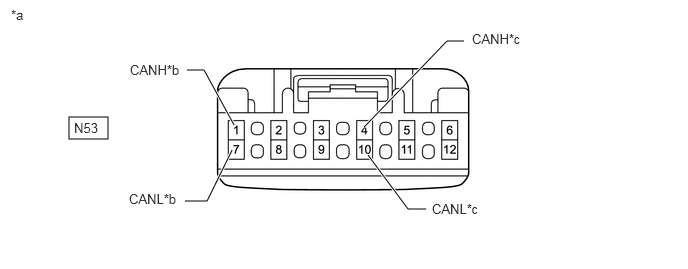

*a Front view of wire harness connector
(to No. 8 CAN Junction Connector)*b to No. 2 CAN Junction Connector *c to No. 1 CAN Junction Terminal - - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Connected to N53-1 (CANH) - N53-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 2 CAN junction connector N53-4 (CANH) - N53-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 1 CAN junction terminal Result
Result Proceed to OK A NG (No. 1 CAN junction terminal CAN main wire) B NG (No. 2 CAN junction connector CAN main wire) C
Result:
A
REPLACE NO. 8 CAN JUNCTION CONNECTOR
Result:
C
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 8 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
Result:
B
See step 4
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 1 CAN JUNCTION TERMINAL - NO. 8 CAN JUNCTION CONNECTOR)
- Reconnect the N53 No. 8 CAN junction connector.
- Disconnect the No. 1 CAN junction terminal connector.
*a Front view of wire harness connector
(to No. 1 CAN Junction Terminal) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N54-3 (CANH) - N54-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 1 CAN JUNCTION TERMINAL
Result:
NG
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 1 CAN JUNCTION TERMINAL - NO. 8 CAN JUNCTION CONNECTOR)
