Section 76 (Can Communication System (HV) - Circuit Tests (3 Of 6))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Check Bus 1 Lines for Short Circuit [11/2018 - 02/2019]
>>
Wiring Diagram

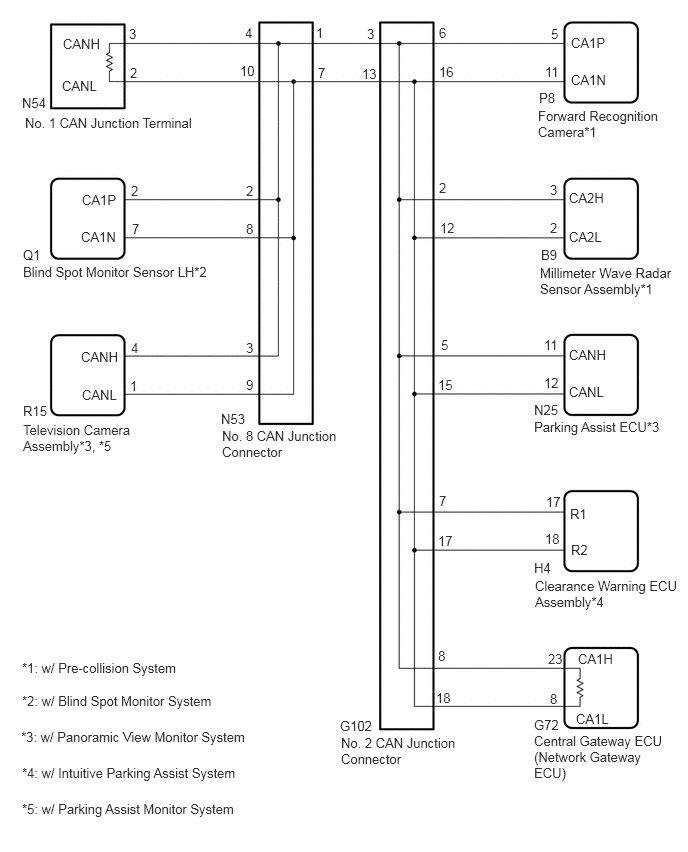

Check Bus 1 Lines for Short Circuit [11/2018 - 02/2019]: Wiring Diagram
