Check Bus 1 Lines for Short Circuit [10/2022 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

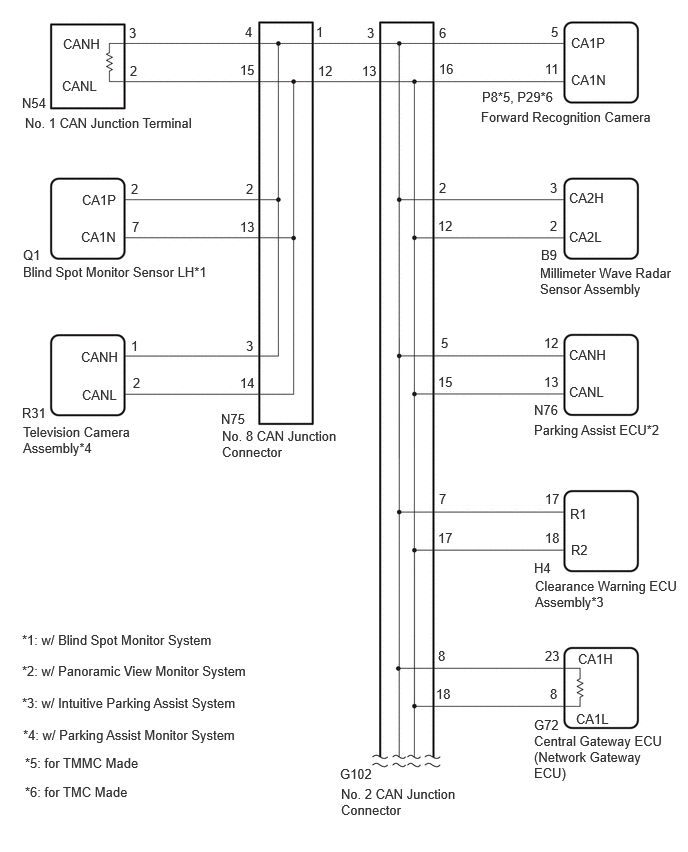

  1. GTY1115272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY979133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
