Removal [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION WIRE

    Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY (w/o Stop And Start System)

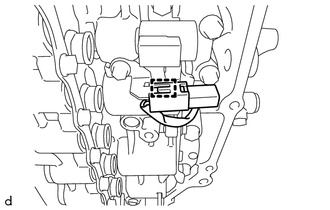

    1. Disengage the clamp to disconnect the transmission revolution sensor (NC) wire connector.
      GTY694199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

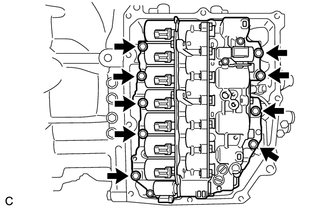

    2. Remove the 9 bolts and transmission valve body assembly from the automatic transaxle case sub-assembly.
      GTY755397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 transaxle case gaskets from the automatic transaxle case sub-assembly.
      GTY744873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transaxle Case Gasket
      *2 No. 1 Front Oil Pump Cover Gasket
      *3 No. 2 Front Oil Pump Cover Gasket
    4. Remove the transaxle case gasket from the counter drive gear sub-assembly.
    5. Remove the No. 1 front oil pump cover gasket from the front oil pump assembly.
    6. Remove the No. 2 front oil pump cover gasket from the front oil pump assembly.
  3. REMOVE TRANSMISSION VALVE BODY ASSEMBLY (w/ Stop And Start System)
    1. Disengage the clamp to disconnect the transmission revolution sensor (NC) wire connector.
      GTY694199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

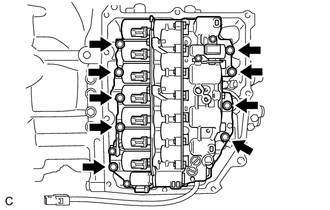

    2. Remove the 9 bolts and transmission valve body assembly from the automatic transaxle case sub-assembly.
      GTY909613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 transaxle case gaskets from the automatic transaxle case sub-assembly.
      GTY914032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transaxle Case Gasket
      *2 No. 1 Front Oil Pump Cover Gasket
      *3 No. 2 Front Oil Pump Cover Gasket
    4. Remove the transaxle case gasket from the counter drive gear sub-assembly.
    5. Remove the transaxle case gasket from the front oil pump assembly.
    6. Remove the No. 1 front oil pump cover gasket from the front oil pump assembly.
    7. Remove the No. 2 front oil pump cover gasket from the front oil pump assembly.
