Removal [11/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE TRANSMISSION VALVE BODY ASSEMBLY
Refer to REMOVAL [11/2018 - ]
- REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

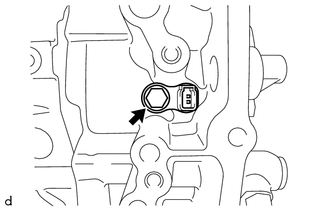

- Remove the bolt and transmission revolution sensor (NT) from the automatic transaxle case sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE TRANSMISSION REVOLUTION SENSOR (NC)
- Remove the bolt, spacer and transmission revolution sensor (NC) from the counter drive gear sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
