Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION REVOLUTION SENSOR (NC)

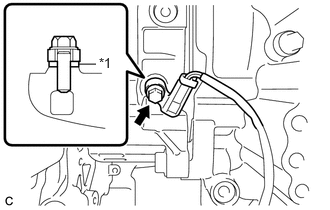

    1. Install the transmission revolution sensor (NC) and spacer to the counter drive gear sub-assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      GTY749604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Spacer
  2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT)
    1. Install the transmission revolution sensor (NT) to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  3. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    Refer to INSTALLATION [11/2018 - ]
