Installation [10/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    NOTE:

    Both the park/neutral position switch assembly and transmission control shaft lever are available in two different shapes due to design changes. As they are not compatible with each other, when replacing the park/neutral position switch assembly, make sure to also replace the transmission control shaft lever as a set.

    1. Temporarily install the park/neutral position switch assembly to the automatic transaxle case sub-assembly with the 2 bolts.
      NOTE:

      Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be installed correctly.

    2. Temporarily install the transmission control shaft lever to the park/neutral position switch assembly.

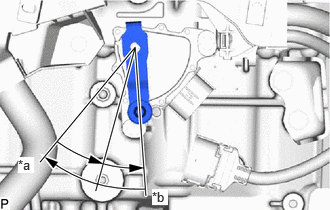

    3. Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY855059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a P
      *b N
    4. Remove the transmission control shaft lever from the park/neutral position switch assembly.
    5. Align the protrusion with the neutral basic line.
      GTY929816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Protrusion
    6. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    7. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the washer and nut.

      Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

    8. Connect the park/neutral position switch assembly connector.
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
      GTY934293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      NOTE:

      Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

  3. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 71

  4. INSTALL ECM

    Refer to INSTALLATION [08/2020 - ]

  5. INSTALL BATTERY

    Refer to INSTALLATION [11/2018 - 10/2023] , or refer to INSTALLATION [10/2023 - ]

  6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

    See step  2

  7. INSPECT SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 2

  8. ADJUST SHIFT LEVER POSITION

    Refer to ADJUSTMENT [11/2018 - ]
