Reassembly [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)
    1. Using SST and a press, install a new front differential case front tapered roller bearing (inner race) to the differential case assembly.

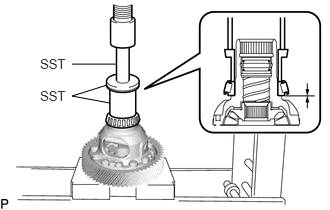

      GTY892579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-20011
      • SST: 09513-36040
      NOTE:
      • Do not damage the front differential case front tapered roller bearing (inner race) cage when installing the front differential case front tapered roller bearing (inner race).
      • Be sure to install the front differential case front tapered roller bearing (inner race) so that there is no clearance between the front differential case front tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  2. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
    1. Using SST and a hammer, install the differential drive pinion shim and a new front differential case front tapered roller bearing (outer race) to the transaxle housing.
      GTY897819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60021
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07200
      NOTE:

      Be sure to install the front differential case front tapered roller bearing (outer race) so that there is no clearance between the front differential case front tapered roller bearing (outer race), differential drive pinion shim and the transaxle housing. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

  3. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)
    1. Using SST and a press, install a new front differential case rear tapered roller bearing (inner race) to the differential case assembly.
      GTY749150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-20011
      • SST: 09950-60021
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07200
      NOTE:
      • Do not damage the front differential case rear tapered roller bearing (inner race) cage when installing the front differential case rear tapered roller bearing (inner race).
      • Be sure to install the front differential case rear tapered roller bearing (inner race) so that there is no clearance between the front differential case rear tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  4. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
    1. Using SST and a hammer, install a new front differential case rear tapered roller bearing (outer race) to the automatic transaxle case sub-assembly.

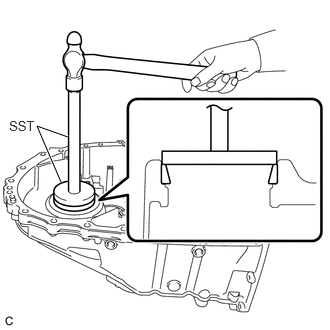

      GTY744048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60021
        1. 09951-00790
      • SST: 09950-70010
        1. 09951-07200
      NOTE:

      Be sure to install the front differential case rear tapered roller bearing (outer race) so that there is no clearance between the front differential case rear tapered roller bearing (outer race) and the automatic transaxle case sub-assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Hold the differential case assembly in a vise between aluminum plates.
    2. Coat the lip of a new front drive shaft oil seal RH with MP grease.
    3. Using SST and a hammer, install a new front drive shaft oil seal RH to the differential case assembly.

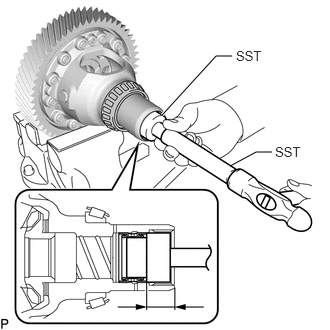

      GTY908607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60011
        1. 09951-00410
      • SST: 09950-70010
        1. 09951-07200

      Standard Depth

      21.5 to 22.5 mm (0.846 to 0.886 in.)

      NOTE:

      Do not damage the lip of the front drive shaft oil seal RH.
