Section 52 (Dynamic Torque Vectoring AWD System - Diagnostic Codes & Symptom Tests)
>>
Dynamic Torque Vectoring AWD System
>>
AWD Control Switch Circuit [11/2018 - ]
>>
Wiring Diagram

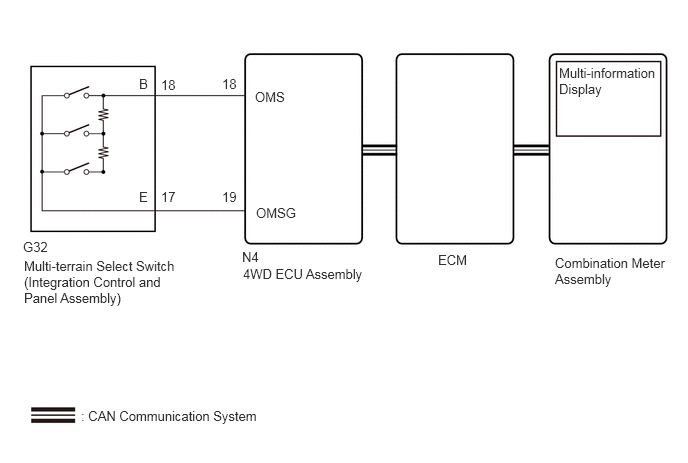

AWD Control Switch Circuit [11/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
