System Diagram [12/2021 - ]
WARNING: This page is about a different variant/trim than selected.

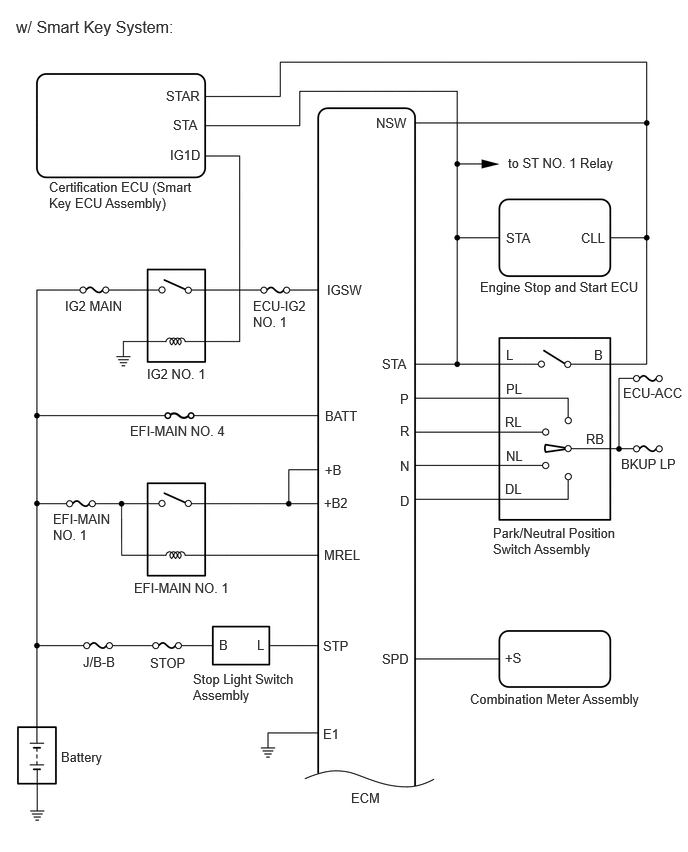

w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

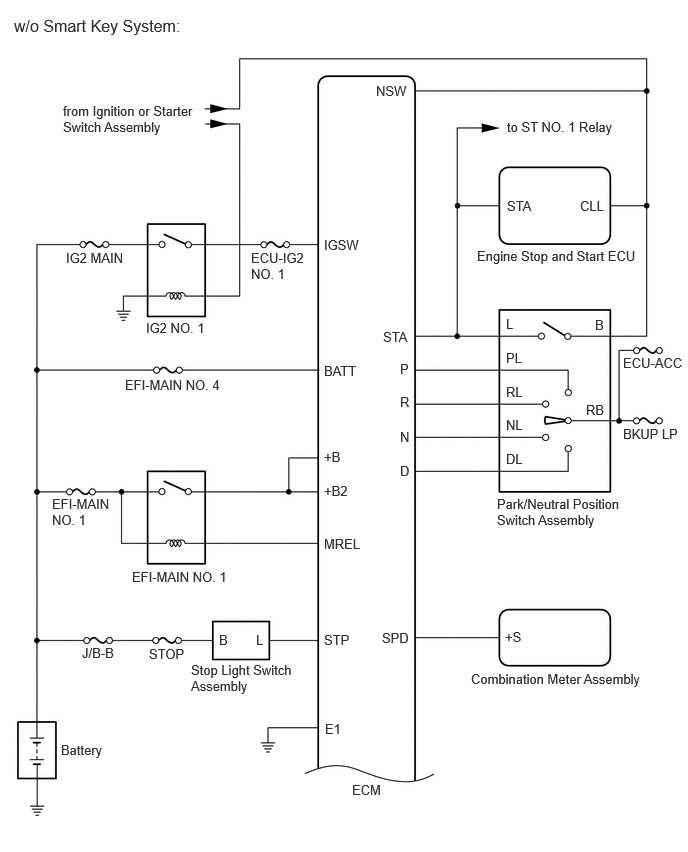

w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
