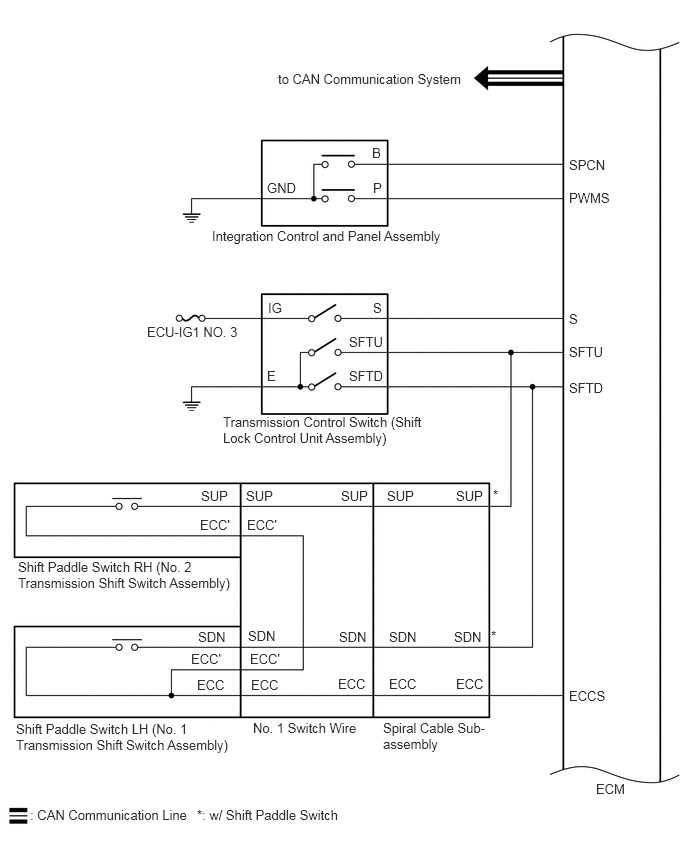

System Diagram [10/2019 - 08/2020]
WARNING: This page is about a different variant/trim than selected.

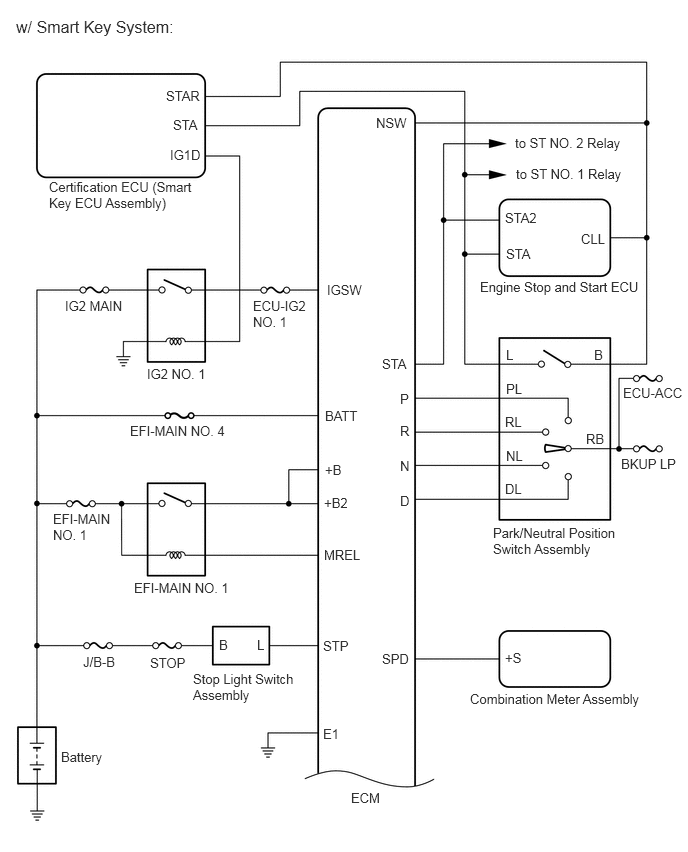

w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

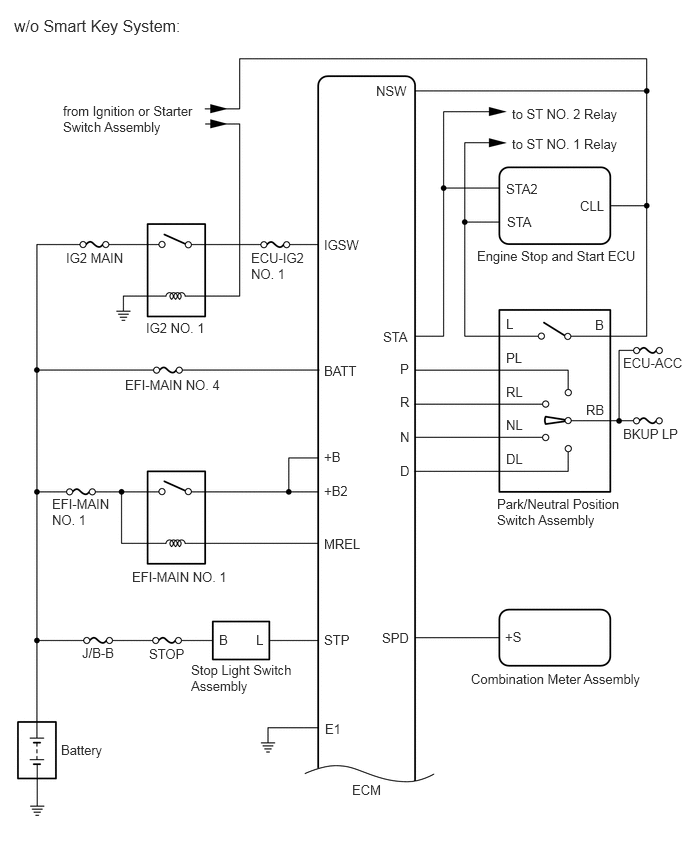

w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

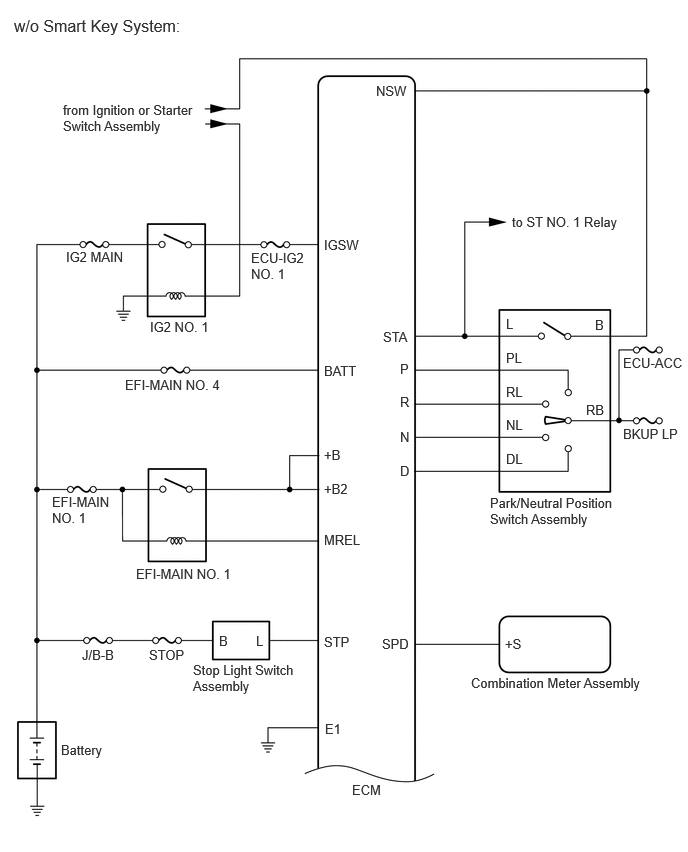

w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

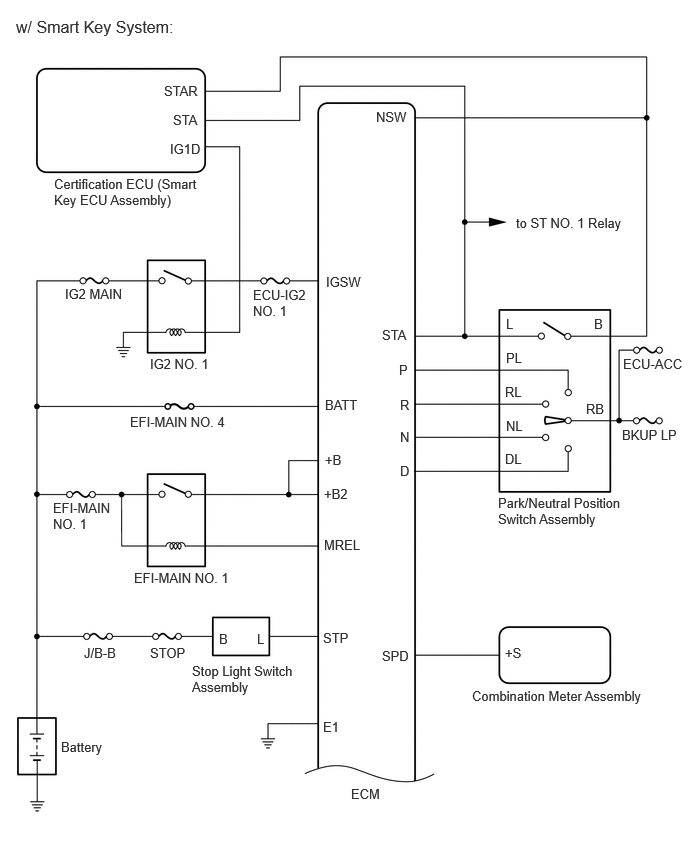

w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

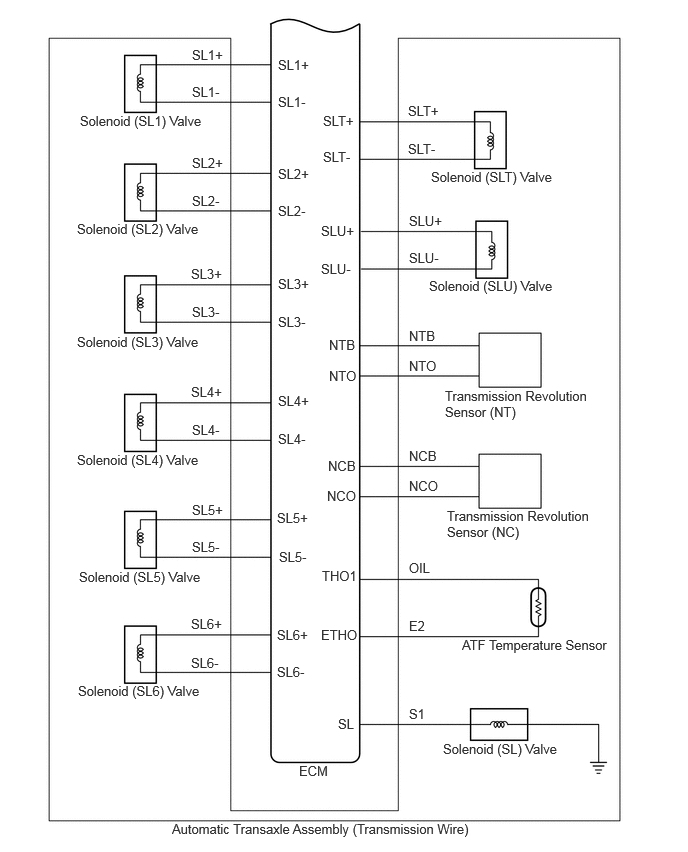

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
