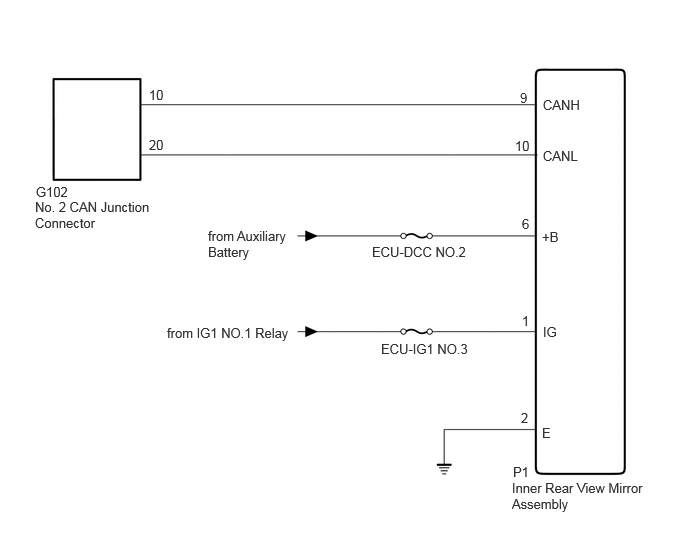

Inner Rear View Mirror Assembly Communication Stop Mode [08/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY974741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
