Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.

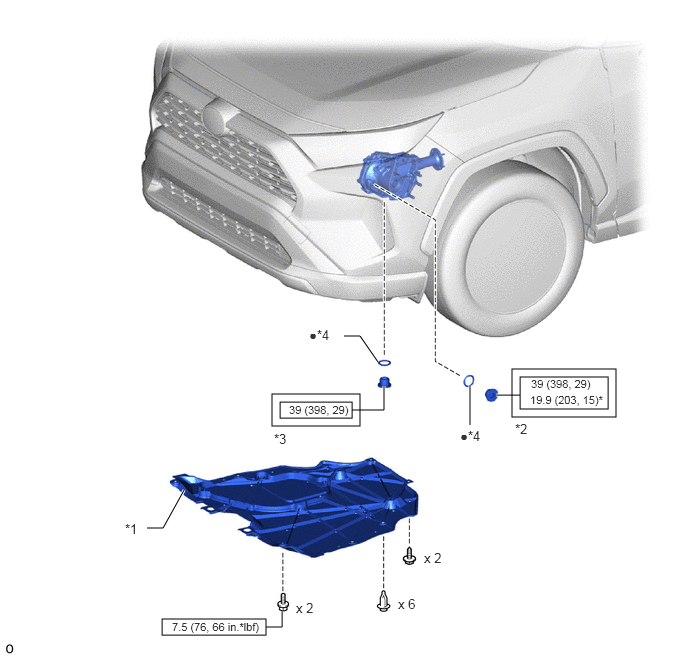

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | *2 | TRANSFER FILLER PLUG |
| *3 | TRANSFER DRAIN PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with SST and union nut wrench | • | Non-reusable part |
