Installation [11/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT
Refer to PROCEDURE - Step 1
- INSTALL TRANSFER ASSEMBLY
- Clean the bolt holes.

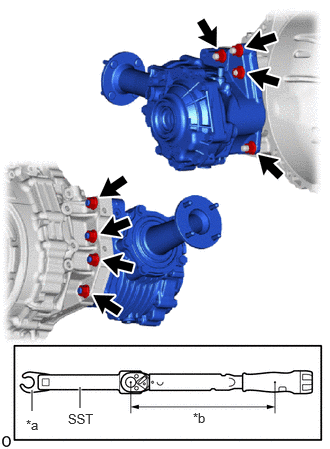

- for Type A:
Using SST and union nut wrench, install the transfer assembly to the transaxle with the 6 nuts and 2 bolts.
*a Union Nut Wrench *b Torque Wrench Fulcrum Length Specified tightening torque
Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)
- SST: 09961-00950
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2018 - ]
- When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 40.2 N.m (410 kgf/cm, 30 ft.lbf)

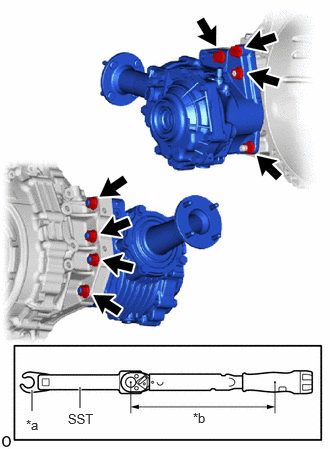

- for Type B:
Using SST and union nut wrench, install the transfer assembly to the transaxle with the 8 nuts.
*a Union Nut Wrench *b Torque Wrench Fulcrum Length Specified tightening torque
Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)
- SST: 09961-00950
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2018 - ]
- When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 40.2 N.m (410 kgf/cm, 30 ft.lbf)
- INSTALL REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
- INSTALL REAR ENGINE MOUNTING INSULATOR
Refer to PROCEDURE - Step 13
- INSTALL NO. 1 PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
- INSTALL PROPELLER SHAFT HEAT INSULATOR
Refer to PROCEDURE - Step 14
- INSTALL TRANSAXLE ASSEMBLY
Refer to INSTALLATION [11/2018 - ]
