Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL 4WD ECU ASSEMBLY
    1. for Type A:
      1. Install the 4WD ECU assembly with the bolt.

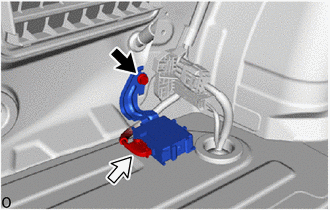

        GTY853612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector

        Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

      2. Connect the connector.
    2. for Type B:
      1. Install the 4WD ECU assembly with the 2 bolts.
        GTY856323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector

        Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

      2. Connect the connector.
  2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 1 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 24 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 25 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

  4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 26 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 27 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 25 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 25 [10/2023 - ]

  5. INSTALL TETHER ANCHOR BRACKET SET

    Refer to PROCEDURE - Step 27 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 28 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 26 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 26 [10/2023 - ]

  6. INSTALL REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 28 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 29 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 27 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 27 [10/2023 - ]

  7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 43 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 44 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 42 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 42 [10/2023 - ]

  9. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 47 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 48 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 46 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 46 [10/2023 - ]

  10. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 58 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 59 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 57 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 57 [10/2023 - ]

  11. INSTALL REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 64 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 65 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 63 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 64 [10/2023 - ]

  12. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 66 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 67 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 65 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 66 [10/2023 - ]

  13. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 67 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 68 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 66 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 67 [10/2023 - ]

  14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR SEAT ASSEMBLY

    Refer to INSTALLATION [11/2018 - ]

  16. RESET MEMORY

    Refer to CALIBRATION [11/2018 - ]
