Parts Location [12/2021 - 10/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

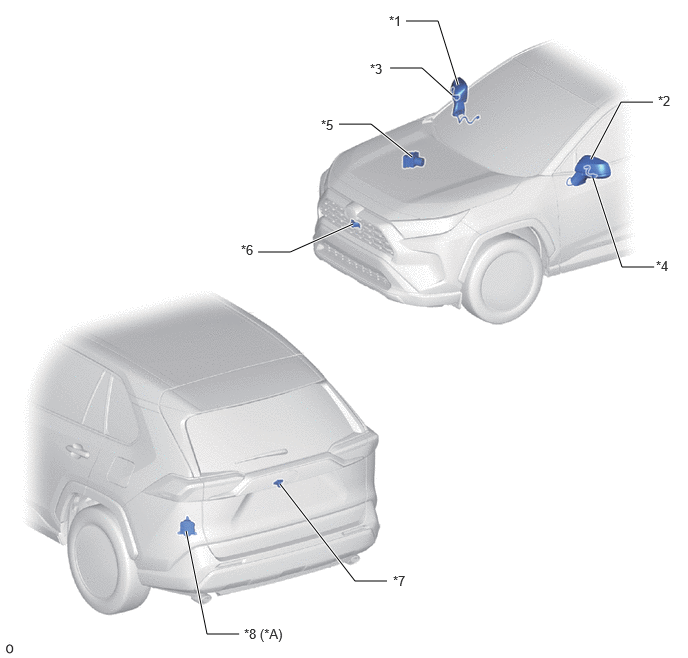

| *A |
w/ Blind Spot Monitor System |
- |
- |
| *1 |
OUTER REAR VIEW MIRROR ASSEMBLY RH |
*2 |
OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *3 |
SIDE TELEVISION CAMERA ASSEMBLY RH |
*4 |
SIDE TELEVISION CAMERA ASSEMBLY LH |
| *5 |
BRAKE ACTUATOR ASSEMBLY
- - NO. 2 SKID CONTROL ECU
|
*6 |
FRONT TELEVISION CAMERA ASSEMBLY |
| *7 |
TELEVISION CAMERA ASSEMBLY |
*8 |
BLIND SPOT MONITOR SENSOR LH |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

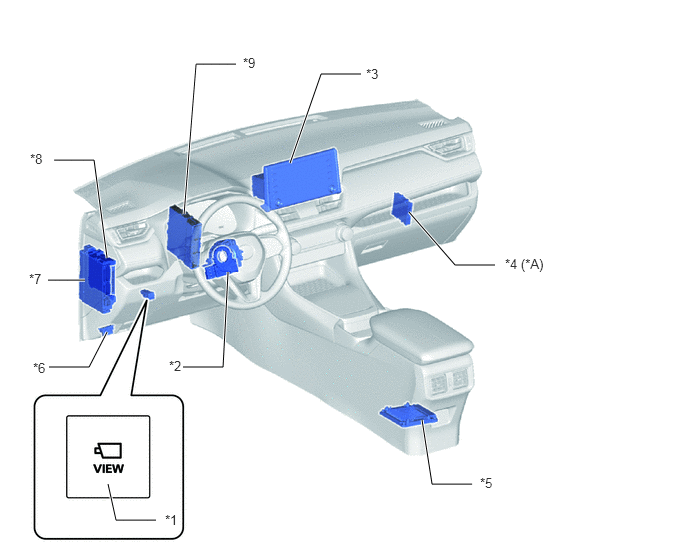

| *A |
w/ Intuitive Parking Assist System |
- |
- |
| *1 |
PANORAMIC VIEW MONITOR SWITCH |
*2 |
STEERING SENSOR |
| *3 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*4 |
CLEARANCE WARNING ECU ASSEMBLY |
| *5 |
PARKING ASSIST ECU |
*6 |
DLC3 |
| *7 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- - ECU-B NO. 2 FUSE
- - ECU-IG1 NO. 3 FUSE
- - ECU-ACC FUSE
- - ECU-DCC NO. 1 FUSE
- - ECU-IG1 NO. 2 FUSE
|
*8 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
- |
- |
