DTC C1683: Side Camera Feedback Malfunction [11/2018 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [11/2018 - 10/2022]

      Chassis > Circumference Monitoring Camera Control Module > Clear DTCs

    2. Check for DTCs.

      Refer to DTC CHECK / CLEAR [11/2018 - 10/2022]

      Chassis > Circumference Monitoring Camera Control Module > Trouble Codes

      OK

      DTC C1683 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

    Result:

    NG

    See step  2

  2. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR ASSEMBLY RH)
    1. Disconnect the N24 parking assist ECU connector.
    2. Disconnect the I13 outer rear view mirror assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N24-40 (RCB+) - I13-3 (RCB+) Always Below 1 Ω
      N24-38 (RCV+) - I13-4 (RCV+) Always Below 1 Ω
      N24-16 (RCV-) - I13-12 (RCV-) Always Below 1 Ω
      N24-17 (RGND) - I13-11 (RGND) Always Below 1 Ω
      N24-40 (RCB+) or I13-3 (RCB+) - Body ground Always 10 kΩ or higher
      N24-38 (RCV+) or I13-4 (RCV+) - Body ground Always 10 kΩ or higher
      N24-16 (RCV-) or I13-12 (RCV-) - Body ground Always 10 kΩ or higher
      N24-17 (RGND) or I13-11 (RGND) - Body ground Always 10 kΩ or higher
      N24-39 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK PARKING ASSIST ECU (RCV-, RGND)
    1. Disconnect the N24 parking assist ECU connector.
      GTY929488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Parking Assist ECU)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      17 (RGND) - Body ground Always Below 1 Ω
      16 (RCV-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2018 - 10/2022]

    Result:

    OK

    See step  4

  4. CHECK PARKING ASSIST ECU (RCB+, RGND)
    1. Measure the resistance according to the value(s) in the table below.
      GTY841905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Parking Assist ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      N24-17 (RGND) - Body ground Always Below 1 Ω
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      N24-40 (RCB+) - N24-17 (RGND) Power switch on (IG) 5.5 to 7.05 V
      N24-40 (RCB+) - N24-17 (RGND) Power switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2018 - 10/2022]

    Result:

    OK

    See step  5

  5. CHECK SIDE TELEVISION CAMERA ASSEMBLY RH (RCV+, RGND)
    1. Using an oscilloscope, check the waveform of the side television camera assembly RH.

      HINT:

      A waterproof connector is used for the side television camera assembly RH. Therefore, inspect the waveform at the parking assist ECU with the connector connected.

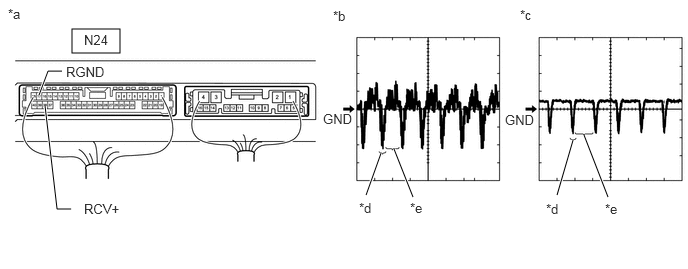

      GTY891084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Parking Assist ECU)      		 *b Waveform 1 (camera lens not covered, displaying an image)
      *c Waveform 2 (camera lens covered, blacking out the screen) *d Synchronization Signal
      *e Video Waveform - -

      HINT:

      • The video waveform changes according to the image sent by the side television camera assembly RH.
      • The video waveform is constantly output when the power switch is on (ACC).
      MEASUREMENT CONDITION

      Item Content
      Tester Connection N24-38 (RCV+) - N24-17 (RGND)
      Tool Setting 200 mV/DIV., 50 μsec./DIV.
      Condition Power switch on (IG), panoramic view monitor switch on

      OK

      Waveform is similar to that shown in illustration.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2018 - 10/2022]

    Result:

    NG

    See step  6

  6. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
    1. Disconnect the side television camera assembly RH connector.
      GTY846977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Side Television Camera Assembly RH)
      *b Front view of wire harness connector
      (to Outer Rear View Mirror Assembly RH)
    2. Disconnect the outer rear view mirror assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-1 (SCB+) - I13-3 (RCB+) Always Below 1 Ω
      B-3 (SCV+) - I13-4 (RCV+) Always Below 1 Ω
      B-7 (SCV-) - I13-12 (RCV-) Always Below 1 Ω
      B-5 (SGND) - I13-11 (RGND) Always Below 1 Ω
      B-1 (SCB+) or I13-3 (RCB+) - Body ground Always 10 kΩ or higher
      B-3 (SCV+) or I13-4 (RCV+) - Body ground Always 10 kΩ or higher
      B-7 (SCV-) or I13-12 (RCV-) - Body ground Always 10 kΩ or higher
      B-5 (SGND) or I13-11 (RGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH. Refer to  REMOVAL [11/2018 - ]

    Result:

    OK

    See step  7

  7. REPLACE SIDE TELEVISION CAMERA ASSEMBLY RH
    1. Replace the side television camera assembly RH with a new or normally functioning one.

      Refer to REMOVAL [11/2018 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. CHECK FOR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [11/2018 - 10/2022]

      Chassis > Circumference Monitoring Camera Control Module > Clear DTCs

    2. Check for DTCs.

      Refer to DTC CHECK / CLEAR [11/2018 - 10/2022]

      Chassis > Circumference Monitoring Camera Control Module > Trouble Codes

      OK

      DTC C1683 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (SIDE TELEVISION CAMERA ASSEMBLY RH IS DEFECTIVE)

    Result:

    NG

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2018 - 10/2022]
