Replacement [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REPLACE RING PIN
    NOTE:

    It is not necessary to remove the ring pins unless they are being replaced.

    1. Remove the 12 ring pins.
    2. Using a plastic-faced hammer, install 12 new ring pins.
      GTY758988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Top Side *b Bottom Side
      *c Protrusion Height *d 14 mm (0.551 in.)
      *e 12 mm (0.472 in.) - -

      Standard Protrusion Height

      5.0 to 7.0 mm (0.197 to 0.276 in.)

  2. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pins unless they are being replaced.

    1. Remove the 10 straight pins.
    2. Using a plastic-faced hammer, install 10 new straight pins.

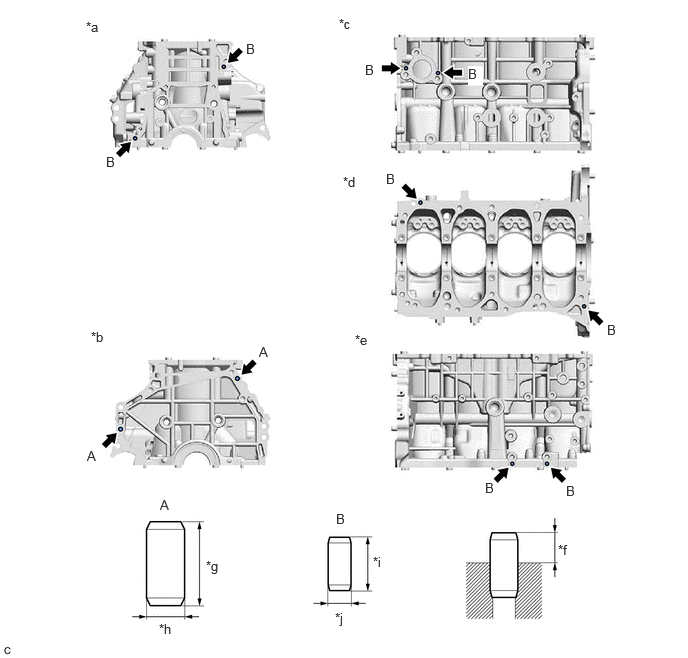

      GTY764600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Side *b Rear Side
      *c LH Side *d Bottom Side
      *e RH Side *f Protrusion Height
      *g 22 mm (0.866 in.) *h 10 mm (0.394 in.)
      *i 14 mm (0.551 in.) *j 6.0 mm (0.236 in.)

      Standard Protrusion Height

      Straight Pin Specified Condition
      (A) 11.0 to 13.0 mm (0.433 to 0.512 in.)
      (B) 5.0 to 7.0 mm (0.197 to 0.276 in.)
