Components [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

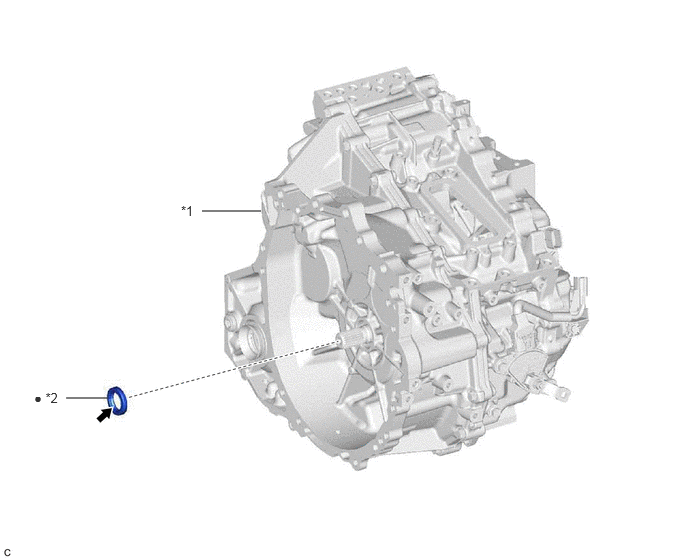

Fig 1: Input Shaft Oil Seal Replacement Components
GTY876708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HYBRID VEHICLE TRANSAXLE ASSEMBLY *2 INPUT SHAFT TYPE T OIL SEAL
• Non-reusable part MP grease
