Section 125 (Immobiliser System (HV, W/O Smart Key) - Diagnostics - Introduction)
>>
IMMOBILISER SYSTEM (for HV Model without Smart Key System)
>>
System Diagram [10/2022 - ]
>>
System Diagram [10/2022 - ]
System Diagram [10/2022 - ]
WARNING:
This page is about a different variant/trim than selected.

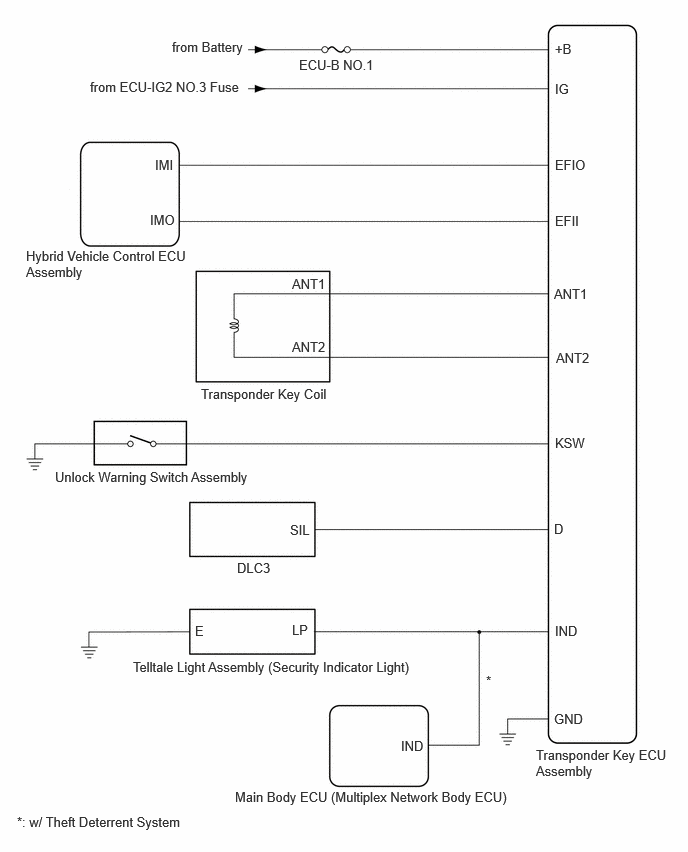

Fig 1: Immobiliser System (For HV Model Without Smart Key System) [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
