Section 122 (Ignition System (A25A-FXS) - Inspection)
>>
Ignition System
>>
System Diagram [11/2018 - ]
>>
System Diagram [11/2018 - ]
System Diagram [11/2018 - ]
WARNING:
This page is about a different variant/trim than selected.

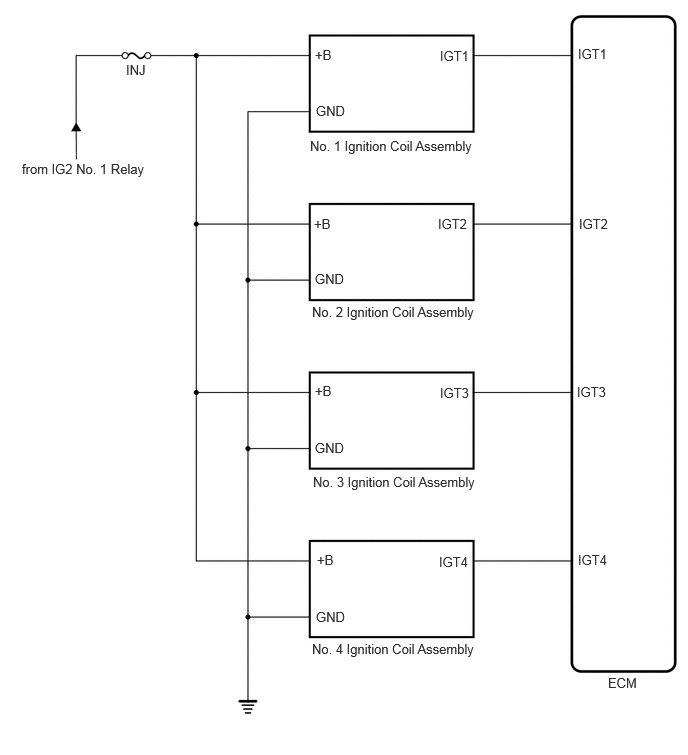

Fig 1: Ignition System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
