Removal [10/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BATTERY

    Refer to REMOVAL [10/2019 - 08/2020]

  3. REMOVE ECM

    Refer to REMOVAL [11/2018 - 08/2020]

  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  5. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 8

  6. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 9

  7. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11

  9. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [02/2019 - 08/2020]

  10. REMOVE FRONT FLOOR COVER LH (w/ Cover)

    Refer to PROCEDURE - Step 13

  11. REMOVE FRONT FLOOR COVER RH (w/ Cover)

    Refer to PROCEDURE - Step 15

  12. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

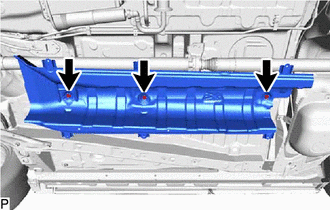

    1. Remove the 3 nuts and front lower No. 1 floor heat insulator from the vehicle body.
      GTY852796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021]

  14. REMOVE NO. 1 CONSOLE BOX DUCT

    See step  3

  15. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    See step  4

  16. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

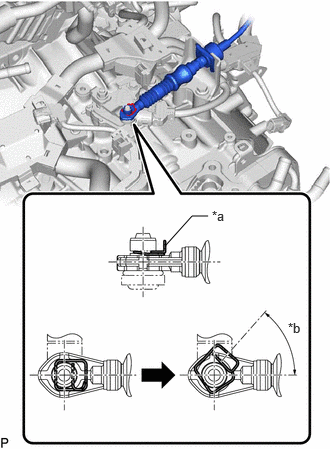

    1. While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.
      GTY917508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b 45° to 60°

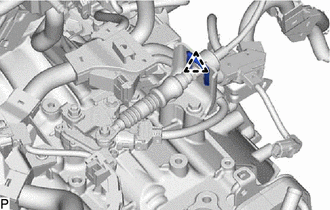

    2. Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
      GTY852800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

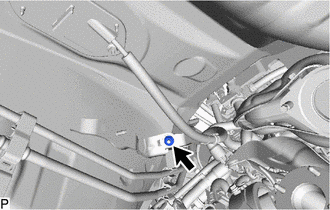

    3. Remove the nut and disconnect the transmission control cable assembly from the vehicle body.
      GTY852799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

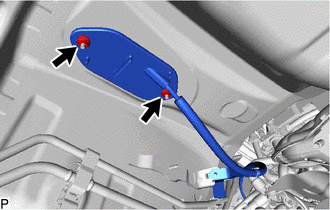

    4. Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.
      GTY852784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
