Installation [11/2018 - 08/2020]: Procedure
- INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
- Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.
Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

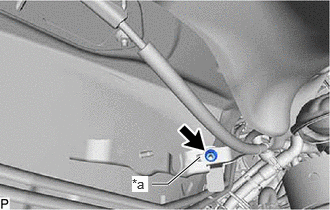

- Connect the transmission control cable assembly to the vehicle body with the nut.
Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)
*a Align the hole on the transmission control cable bracket with the protrusion of the vehicle body. NOTE:Do not deform the transmission control cable bracket.
- Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

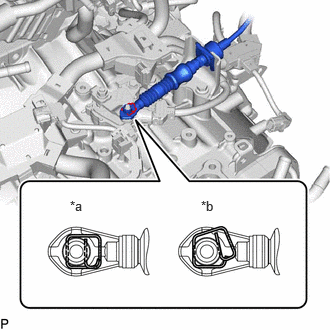

- Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
*a Correct *b Incorrect NOTE:Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.
- Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
See step 2
- INSTALL NO. 1 CONSOLE BOX DUCT
See step 3
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [11/2018 - 12/2021]
- INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
- Install the front lower No. 1 floor heat insulator to the vehicle body with the 3 nuts.
Torque: 4.9 N.m (50 kgf/cm, 43 in.lbf)
- Install the front lower No. 1 floor heat insulator to the vehicle body with the 3 nuts.
- INSTALL FRONT FLOOR COVER RH (w/ Cover)
Refer to PROCEDURE - Step 11
- INSTALL FRONT FLOOR COVER LH (w/ Cover)
Refer to PROCEDURE - Step 13
- INSTALL FRONT EXHAUST PIPE ASSEMBLY
Refer to INSTALLATION [11/2018 - 02/2019] , or refer to INSTALLATION [02/2019 - 08/2020]
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 99
- INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 100
- INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
Refer to PROCEDURE - Step 102
- INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
Refer to PROCEDURE - Step 101
- INSTALL BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 71
- INSTALL ECM
Refer to INSTALLATION [11/2018 - 08/2020]
- INSTALL BATTERY
Refer to INSTALLATION [11/2018 - 10/2023]
- INSPECT SHIFT LEVER POSITION
See step 2
- ADJUST SHIFT LEVER POSITION
Refer to ADJUSTMENT [11/2018 - ]
