Components [08/2020 - ]
WARNING: This page is about a different variant/trim than selected.

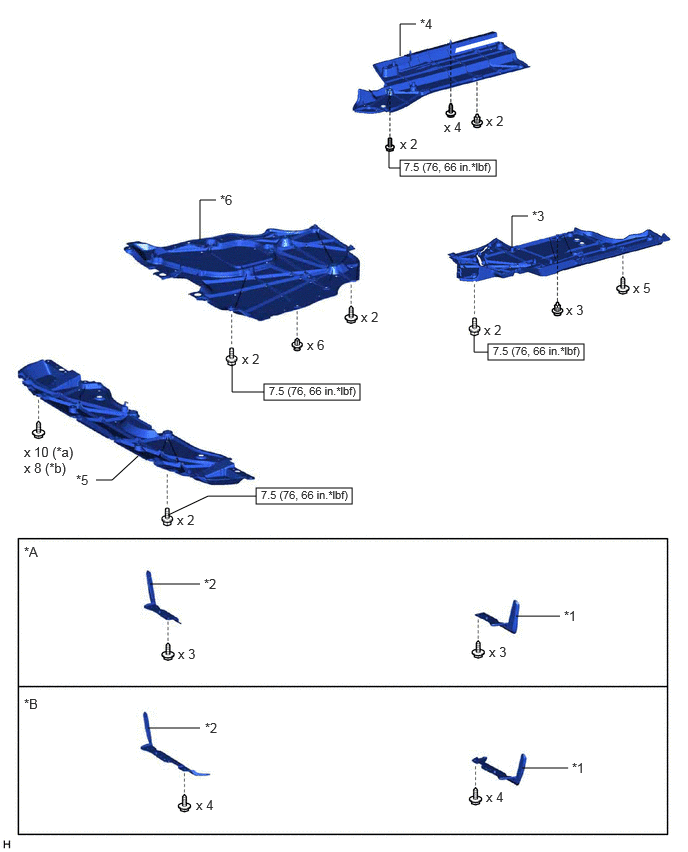

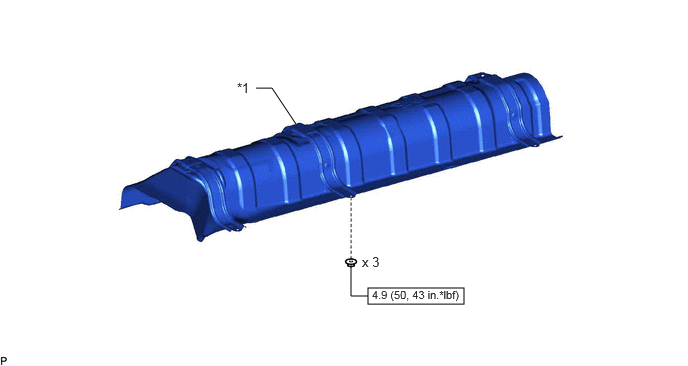

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (1 Of 4)
| Callout | Description | Callout | Description |
| *A | for Short Type | *B | for Long Type |
| *1 | FRONT FENDER FRONT SPLASH SHIELD LH | *2 | FRONT FENDER FRONT SPLASH SHIELD RH |
| *3 | FRONT FLOOR COVER LH | *4 | FRONT FLOOR COVER RH |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *a | Short Type Front Fender Front Splash Shield | *b | Long Type Front Fender Front Splash Shield |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (2 Of 4)
| Callout | Description | Callout | Description |
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

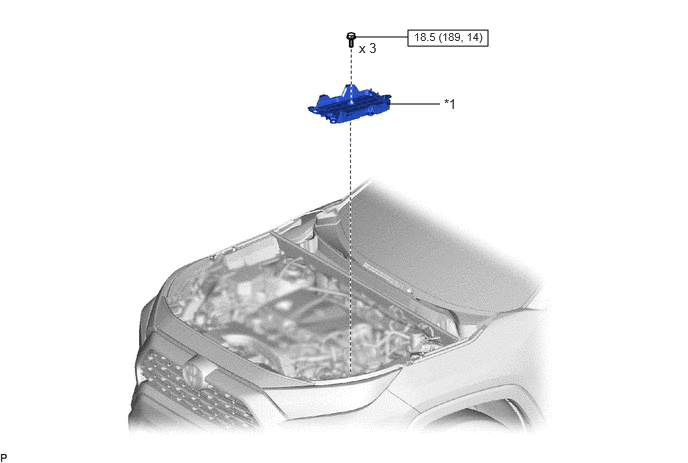

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (3 Of 4)
| Callout | Description | Callout | Description |
| *1 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

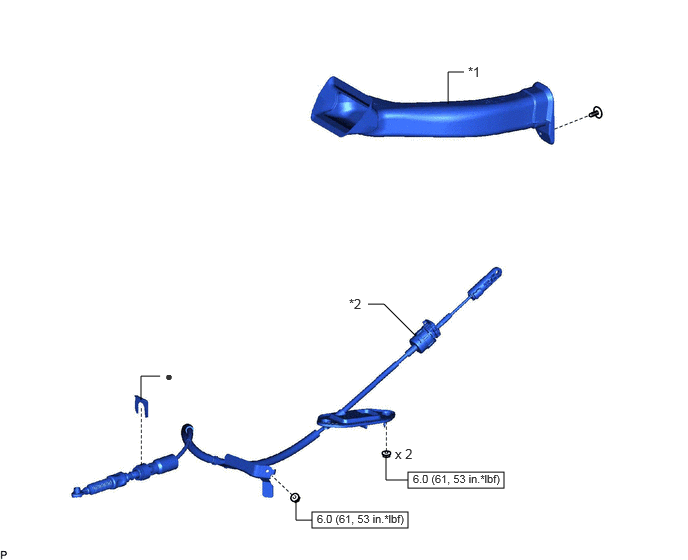

Fig 4: Transmission Control Cable Replacement Components With Torque Specifications [08/2020 - ] (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
