Removal [10/2022 - 10/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSAXLE ASSEMBLY

    Refer to REMOVAL [10/2022 - 10/2023]

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 18

  3. REMOVE NO. 1 PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and No. 1 propeller shaft heat insulator bracket sub-assembly.
      GTY875274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

  4. REMOVE REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 19

  5. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  6. REMOVE TRANSFER ASSEMBLY
    1. GTY869878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 8 nuts and transfer assembly from the transaxle.

  7. REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT

    Refer to PROCEDURE - Step 30

  8. REMOVE WIRING HARNESS CLAMP BRACKET

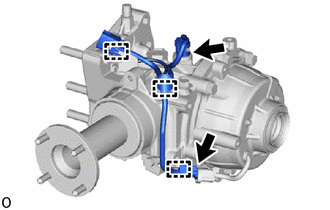

    1. Disconnect the 3 clamps and 2 connectors.
      GTY1117387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

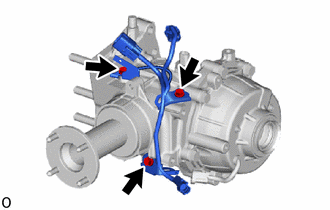

    2. Remove the 3 bolts, 3 wiring harness clamp brackets and clutch control solenoid wire.
      GTY1117386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
