Installation [11/2018 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL WIRING HARNESS CLAMP BRACKET
    1. Install the 3 wiring harness clamp brackets and connect the clutch control solenoid wire with the 3 bolts.

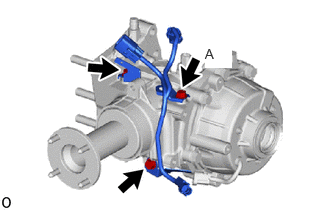

      GTY927529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tighten the ground of the clutch control solenoid wire together with bolt A.

      Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)

    2. Connect the 3 clamps and 2 connectors and install the clutch control solenoid wire.
      GTY875409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT

    Refer to PROCEDURE - Step 1

  3. INSTALL TRANSFER ASSEMBLY
    1. Clean the bolt holes.

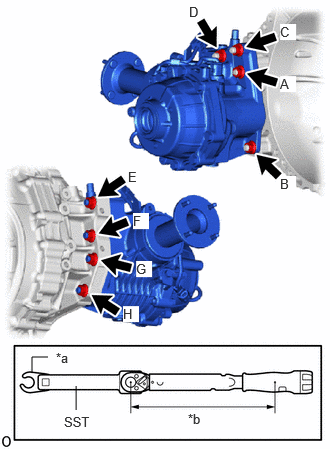

      GTY1109937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Union Nut Wrench
      *b Torque Wrench Fulcrum Length
    2. Temporarily install the transfer assembly to the transaxle with the 8 nuts.
      NOTE:
      • Push the transfer assembly by hand until it is in close contact with the mating surface of the transaxle assembly.
      • If the entire mating surface does not come into close contact, tighten the nuts alternately in the order of nut A and nut B, and bring the mating surfaces into close contact little by little.
      • Make sure the mating surfaces of nut A and nut B are in close contact. Then temporarily tighten the nuts in order as follows and bring the entire circumference of the mating surface in close contact.

      HINT:

      Temporarily install order: Temporarily install nut (A) → Temporarily install nut (B) → Temporarily install nut (C) → Temporarily install nut (D) → Temporarily install nut (E) → Temporarily install nut (F) → Temporarily install nut (G) → Temporarily install nut (H)

    3. Using SST and union nut wrench, tighten the 8 nuts.
      • SST: 09961-00950

      Specified tightening torque

      Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

      HINT:

      • Tightening order: Tighten nut (A) → Tighten nut (B) → Tighten nut (C) → Tighten nut (D) → Tighten nut (E) → Tighten nut (F) → Tighten nut (G) → Tighten nut (H)
      • This torque value is effective when SST is straight to a torque wrench.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2018 - ]

      • When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 40.2 N.m (410 kgf/cm, 30 ft.lbf)
  4. INSTALL REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. INSTALL REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 13

  6. INSTALL NO. 1 PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. Install the No. 1 propeller shaft heat insulator bracket sub-assembly with the 2 bolts.
      GTY875274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

  7. INSTALL PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 14

  8. INSTALL TRANSAXLE ASSEMBLY

    Refer to INSTALLATION [11/2018 - ]

  9. DYNAMIC TORQUE VECTORING 4WD/AWD SYSTEM CALIBRATION
    1. When the electro magnetic control coupling sub-assembly is replaced, Learning Value Initialization must be performed.

      Refer to CALIBRATION [11/2018 - ]
