Components [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

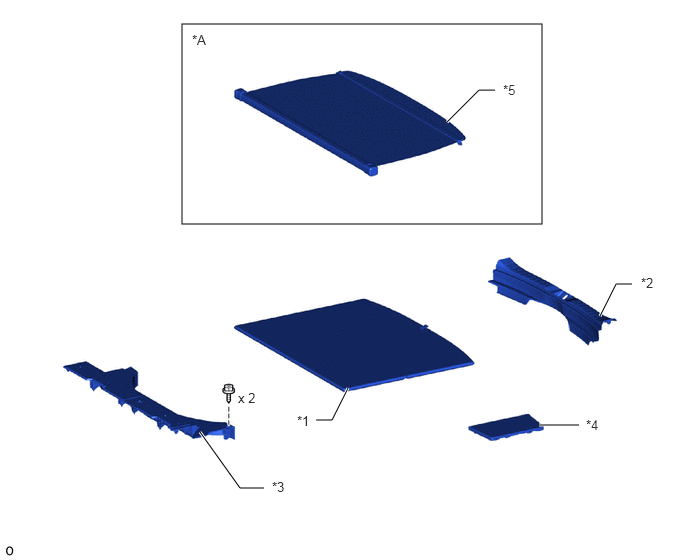

Fig 1: 4WD Control ECU Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Tonneau Cover	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR FLOOR FINISH PLATE
*3	REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE	*4	REAR NO. 3 FLOOR BOARD
*5	TONNEAU COVER ASSEMBLY	-	-

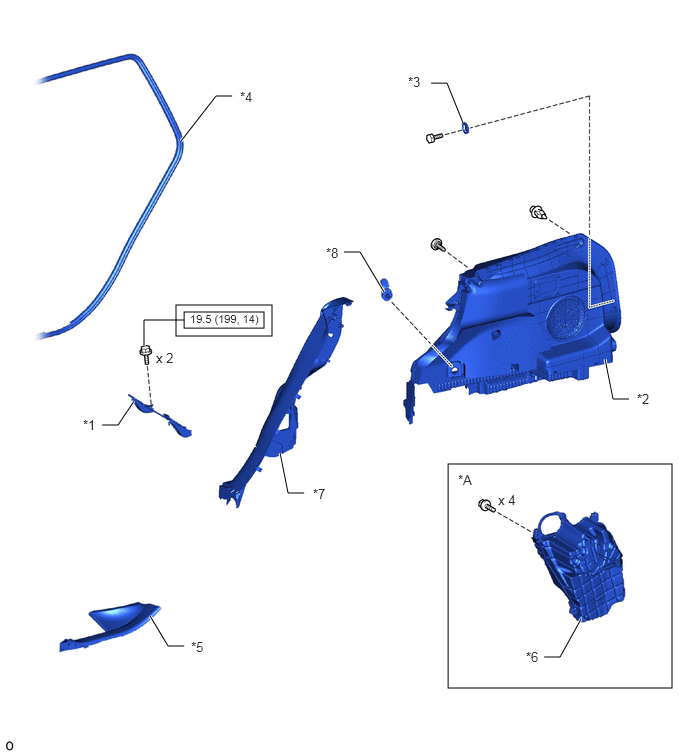

Fig 2: 4WD Control ECU Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Woofer	-	-
*1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH	*2	DECK TRIM SIDE PANEL ASSEMBLY LH
*3	LUGGAGE HOLD BELT STRIKER ASSEMBLY	*4	REAR DOOR OPENING TRIM WEATHERSTRIP LH
*5	REAR DOOR SCUFF PLATE LH	*6	REAR NO. 2 SPEAKER ASSEMBLY
*7	REAR SEAT SIDE GARNISH LH	*8	TETHER ANCHOR BRACKET SET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

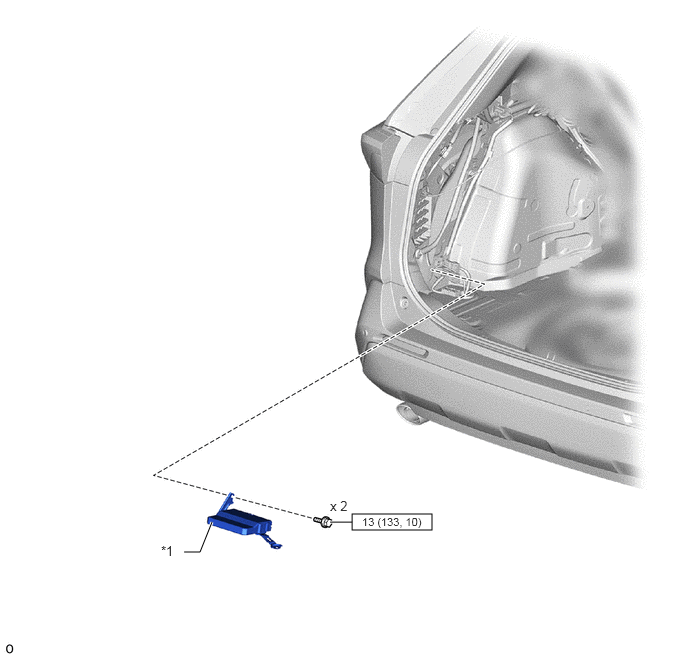

Fig 3: 4WD Control ECU Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	4WD ECU ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
