DTC B167B: Lost Communication with Front Door Pressure Sensor LH; DTC B167C: Front Door Pressure Sensor LH Initialization Incomplete [11/2018 - 02/2019]: Procedure
- CHECK CONNECTION OF CONNECTORS
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the No. 2 side airbag sensor assembly LH and side airbag pressure sensor LH.
Result
Proceed to The connectors are properly connected The connectors are not properly connected
Result:
The connectors are not properly connected
CONNECT CONNECTORS PROPERLY
Result:
The connectors are properly connected
See step 2
- CHECK CONNECTORS
- Disconnect the connectors from the No. 2 side airbag sensor assembly LH and side airbag pressure sensor LH.
*1 Side Airbag Pressure Sensor LH *2 No. 2 Side Airbag Sensor Assembly LH *3 Front Door Wire LH *4 Floor Wire - Check that the connectors (on the No. 2 side airbag sensor assembly LH side and side airbag pressure sensor LH side) are not damaged.
Result
Proceed to The connectors are not deformed or damaged The connectors are deformed or damaged
Result:
The connectors are deformed or damaged
REPLACE FRONT DOOR WIRE LH OR FLOOR WIRE
Result:
The connectors are not deformed or damaged
See step 3
- Disconnect the connectors from the No. 2 side airbag sensor assembly LH and side airbag pressure sensor LH.
- CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
*1 Side Airbag Pressure Sensor LH *2 No. 2 Side Airbag Sensor Assembly LH *3 Front Door Wire LH *4 Floor Wire *5 Service Wire *a Front view of wire harness connector
(to Side Airbag Pressure Sensor LH)*b Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH) - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition J9-2 (BDL+) - Body ground Ignition switch ON Below 1 V J9-1 (BDL-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J9-2 (BDL+) - J9-1 (BDL-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J9-2 (BDL+) - J9-1 (BDL-) Always 1 MΩ or higher J9-2 (BDL+) - Body ground Always 1 MΩ or higher J9-1 (BDL-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
See step 6
Result:
OK
See step 4
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- SIDE AIRBAG PRESSURE SENSOR LH
- Connect the connector to the No. 2 side airbag sensor assembly LH.
*1 Side Airbag Pressure Sensor RH *2 No. 2 Side Airbag Sensor Assembly LH - Interchange the side airbag pressure sensor LH with RH and connect the connectors to them.
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
Body Electrical > SRS Airbag > Trouble Codes
Result
Proceed to DTC B167B or B167C is output DTC B166D or B166E is output DTCs B166D, B166E, B167B and B167C are not output HINT:
Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors to them.
Result:
DTC B166D or B166E is output
REPLACE SIDE AIRBAG PRESSURE SENSOR LH. Refer to REMOVAL [11/2018 - 02/2019]
Result:
DTCs B166D, B166E, B167B and B167C are not output
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
Result:
DTC B167B or B167C is output
See step 5
- Connect the connector to the No. 2 side airbag sensor assembly LH.
- CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH
- Interchange the No. 2 side airbag sensor assembly LH with RH and connect the connectors to them.
*1 No. 2 Side Airbag Sensor Assembly RH *2 Airbag Sensor Assembly - Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
Body Electrical > SRS Airbag > Trouble Codes
Result
Proceed to DTC B167B or B167C is output DTC B166D or B166E is output DTCs B166D, B166E, B167B and B167C are not output HINT:
Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Return the No. 2 side airbag sensor assembly RH and LH to their original positions and connect the connectors to them.
Result:
DTC B167B or B167C is output
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [11/2018 - 02/2019]
Result:
DTC B166D or B166E is output
REPLACE NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH. Refer to REMOVAL [11/2018 - 02/2019]
Result:
DTCs B166D, B166E, B167B and B167C are not output
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
- Interchange the No. 2 side airbag sensor assembly LH with RH and connect the connectors to them.
- CHECK CONNECTORS
- Disconnect the floor wire connector from the front door wire LH.
*1 Side Airbag Pressure Sensor LH *2 No. 2 Side Airbag Sensor Assembly LH *3 Front Door Wire LH *4 Floor Wire - Check that the connectors (on the floor wire side and front door wire LH side) are not damaged.
Result
Proceed to The connector is not deformed or damaged The connector is deformed or damaged
Result:
The connector is deformed or damaged
REPLACE FLOOR WIRE OR FRONT DOOR WIRE LH
Result:
The connector is not deformed or damaged
See step 7
- Disconnect the floor wire connector from the front door wire LH.
- CHECK FLOOR WIRE
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

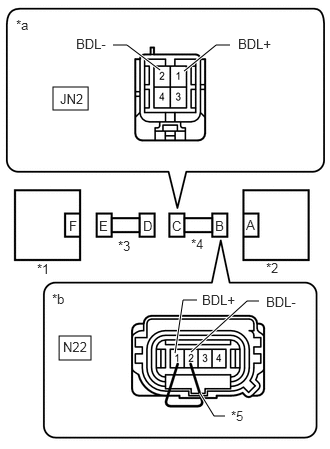

*1 Side Airbag Pressure Sensor LH *2 No. 2 Side Airbag Sensor Assembly LH *3 Front Door Wire LH *4 Floor Wire *5 Service Wire *a Front view of wire harness connector
(to Front Door Wire LH)*b Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH) - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition JN2-1 (BDL+) - Body ground Ignition switch ON Below 1 V JN2-2 (BDL-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition JN2-1 (BDL+) - JN2-2 (BDL-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition JN2-1 (BDL+) - JN2-2 (BDL-) Always 1 MΩ or higher JN2-1 (BDL+) - Body ground Always 1 MΩ or higher JN2-2 (BDL-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE FRONT DOOR WIRE LH
Result:
NG
REPLACE FLOOR WIRE
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
