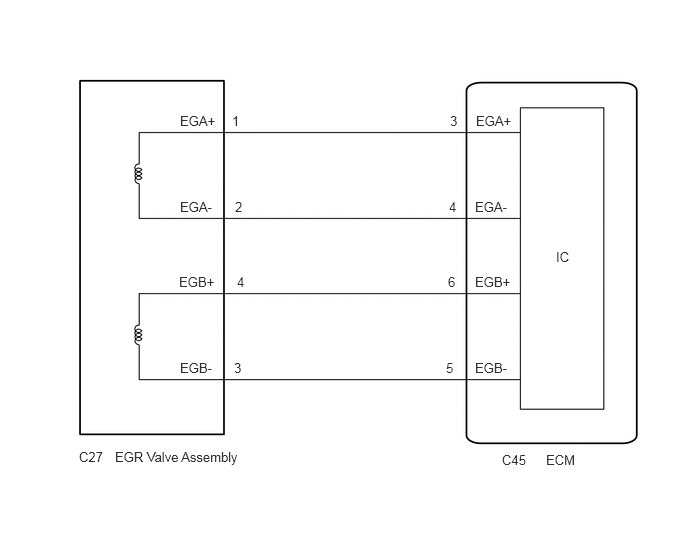

DTC P0403-18: Exhaust Gas Recirculation "A" Circuit Current Below Threshold; DTC P0403-19: Exhaust Gas Recirculation "A" Circuit Current Above Threshold; DTC P1400-18: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Below Threshold; DTC P1400-19: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Above Threshold [02/2019 - 06/2020]: Wiring Diagram
WARNING: This page is about a different car, the 2020 Toyota RAV4 and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
