Components [11/2018 - 08/2020]

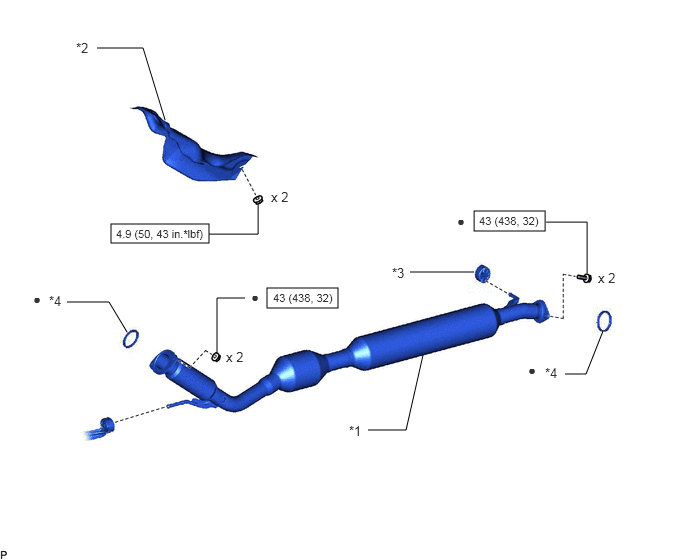

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | NO. 1 UPPER FRONT FLOOR HEAT INSULATOR |
| *3 | EXHAUST PIPE SUPPORT | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 2: Exhaust Manifold Replacement Components With Torque Specifications [11/2018 - 08/2020] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST MANIFOLD | *2 | MANIFOLD STAY |
| *3 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *4 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 | EXHAUST MANIFOLD TO HEAD GASKET | *6 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
