Removal [11/2018 - ]: Procedure

Refer to PROCEDURE - Step 13 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 13 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 13 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

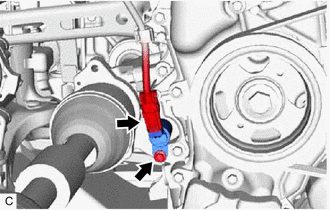

1. Disconnect the oil pressure control valve assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the timing chain cover assembly.
