Satellite Radio Broadcast cannot be Received [10/2022 - ]: Procedure

  1. CHECK SURROUNDINGS
    1. Check if the vehicle is in an environment where reception is difficult due to something blocking the area above the vehicle.
      GTY429423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Example *b In a tunnel
      *c In a building *d Under an overpass
      *e In a forest or on tree-lined path *f Between tall buildings
      *g Under a cliff or overhang - -

      HINT:

      If the area above the vehicle is blocked, such as when in a building or tunnel, reception may not be possible.

      OK

      Area above vehicle is not blocked.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

    Result:

    OK

    See step  2

  2. CHECK RADIO AND DISPLAY RECEIVER ASSEMBLY
    1. Check if CH001 (free broadcast) can be received.

      OK

      CH001 can be received.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  3

  3. CHECK DISPLAY SETTING
    1. Check the display screen.

      Result

      Result Proceed to
      "SAT Ch Unauth" is displayed. A
      "-----" is displayed. B
      None of the displays above are shown. C

    Result:

    THERE IS NO SONG/PROGRAM TITLE OR ARTIST NAME/FEATURE ASSOCIATED WITH CHANNEL AT THAT TIME

    Result:

    See step  6

    Result:

    See step  4

  4. CHECK CONTRACT CONDITIONS
    1. Check if the pay-type contract has been extended, or if the contract period has ended.

      OK

      Pay-type contract is valid.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    TO RECEIVE PAY-TYPE BROADCASTS, CONTRACT MUST BE MADE WITH SATELLITE RADIO COMPANY

    Result:

    OK

    See step  5

  5. PERFORM ACTIVATION REFRESH
    1. Perform activation refresh by referring to the satellite radio company website (http://www.siriusxm.com).

      OK

      Malfunction disappears.

      HINT:

      The SiriusXM radio ID that is necessary to perform activation refresh is displayed when CH000 is selected on the satellite radio.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END

    Result:

    NG

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2022 - ]

  6. CHECK DISPLAY
    1. Check the display screen.

      Result

      Result Proceed to
      "SAT Ck Antenna" is displayed. A
      "SAT No Signal" is displayed. B
      "Loading" is displayed.
      "SAT Ch Off Air" is displayed. C
      After "SAT Ch Unavail" is displayed, display automatically switches to CH001. D
      None of the displays above are shown. E

    Result:

    END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

    Result:

    CHANNEL IS CURRENTLY NOT BEING BROADCASTED. BROADCAST CAN BE LISTENED TO OR VIEWED WHEN IT IS BACK ON AIR. (CHECK WITH RADIO STATION)

    Result:

    CHANNEL BROADCAST HAS ENDED (CHECK WITH RADIO STATION)

    Result:

    See step  11

    Result:

    See step  7

  7. CHECK NO. 4 ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the antenna connector from the No. 1 antenna amplifier assembly.
      GTY1121213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Antenna Amplifier Assembly)
      *b Front view of wire harness connector
      (to No. 3 Antenna Cord Sub-assembly)
    2. Disconnect the antenna connector from the No. 3 antenna cord sub-assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-3 - B-1 Always Below 1 Ω
      A-3a - B-1a Always Below 1 Ω
      A-3 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 4 ANTENNA CORD SUB-ASSEMBLY. Refer to  REMOVAL [11/2018 - ]

    Result:

    OK

    See step  8

  8. CHECK NO. 3 ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the antenna connector from the No. 4 antenna cord sub-assembly.

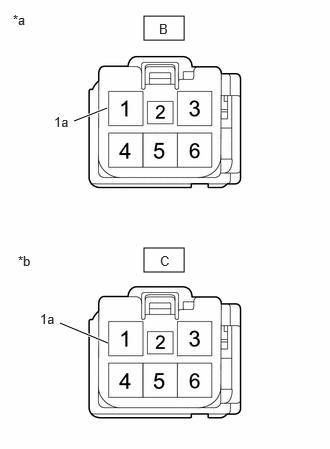

      GTY1120437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 4 Antenna Cord Sub-assembly)
      *b Front view of wire harness connector
      (to Antenna Cord Sub-assembly)
    2. Disconnect the antenna connector from the antenna cord sub-assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-1 - C-1 Always Below 1 Ω
      B-1a - C-1a Always Below 1 Ω
      B-1 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 3 ANTENNA CORD SUB-ASSEMBLY. Refer to  REMOVAL [11/2018 - ]

    Result:

    OK

    See step  9

  9. CHECK ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the antenna connector from the No. 3 antenna cord sub-assembly.
      GTY1121541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 3 Antenna Cord Sub-assembly)
      *b Front view of wire harness connector
      (to Radio and Display Receiver Assembly)
    2. Disconnect the antenna connector from the radio and display receiver assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C-1 - D-1 (SXM) Always Below 1 Ω
      C-1a - D-1a Always Below 1 Ω
      C-1 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE ANTENNA CORD SUB-ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    OK

    See step  10

  10. REPLACE NO. 1 AMPLIFIER ANTENNA ASSEMBLY
    1. Replace the roof antenna assembly with a new or known good one.

      Refer to REMOVAL [11/2018 - ]

    2. Clear the DTCs.

      Body Electrical > Navigation System > Clear DTCs

    3. Check for DTCs.

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (NO. 1 AMPLIFIER ANTENNA ASSEMBLY IS DEFECTIVE)

    Result:

    NG

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2022 - ]

  11. CHECK CURRENTLY SELECTED CHANNEL
    1. Check if CH000 is currently selected.

      OK

      CH000 is selected.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (CH000 HAS NO SOUND. SELECT ANOTHER CHANNEL.)

    Result:

    NG

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2022 - ]
