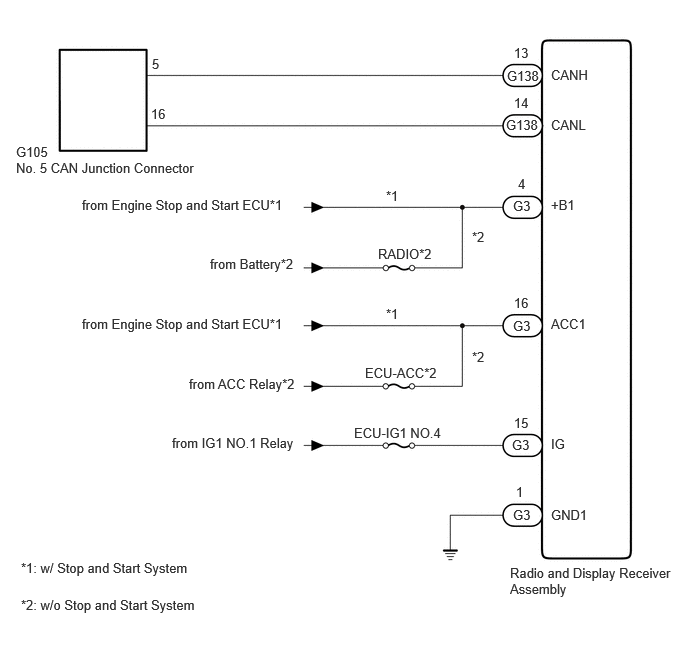

Radio Receiver Assembly Communication Stop Mode [10/2022 - ]: Wiring Diagram

GTY1118196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
