Main Body ECU Communication Stop Mode [11/2018 - ]: Procedure

  1. CHECK FOR OPEN IN CAN BUS WIRE (MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU] BRANCH WIRE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the main body ECU (multiplex network body ECU) connector.
      GTY928114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Main Body ECU [Multiplex Network Body ECU])
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G44-5 (CANH) - G44-4 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Remove the main body ECU (multiplex network body ECU).

      Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    2. Connect the instrument panel junction block assembly connectors.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-11 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      GTY766896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Instrument Panel Junction Block Assembly)
    4. Reconnect the cable to the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A-31 (BECU) - Body ground Always 11 to 14 V
      A-30 (ACC) - Body ground Ignition switch ACC 11 to 14 V
      Ignition switch off Below 1 V
      A-32 (IG) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU])

    Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the instrument panel junction block assembly connectors.

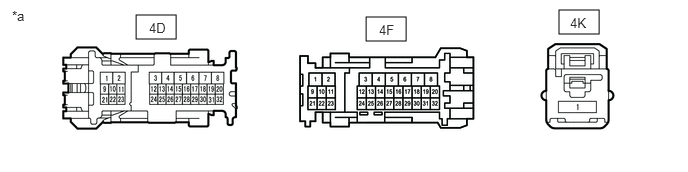

      GTY839946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)      		 - -
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      4D-3 - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      4K-1 - Body ground Always 11 to 14 V
      4F-1 - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the instrument panel junction block assembly connector.
    2. Measure the voltage according to the value(s) in the table below.
      GTY841769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      4A-30 - Body ground Ignition switch ACC 11 to 14 V
      Ignition switch off Below 1 V
      4A-17 - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Result  Proceed to
      OK A
      NG (w/ Smart Key System) B
      NG (w/o Smart Key System) C

    Result:

    A

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    B

    GO TO SMART KEY SYSTEM (for Start Function)

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - 08/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2020 - 12/2021] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2021 - 10/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR
