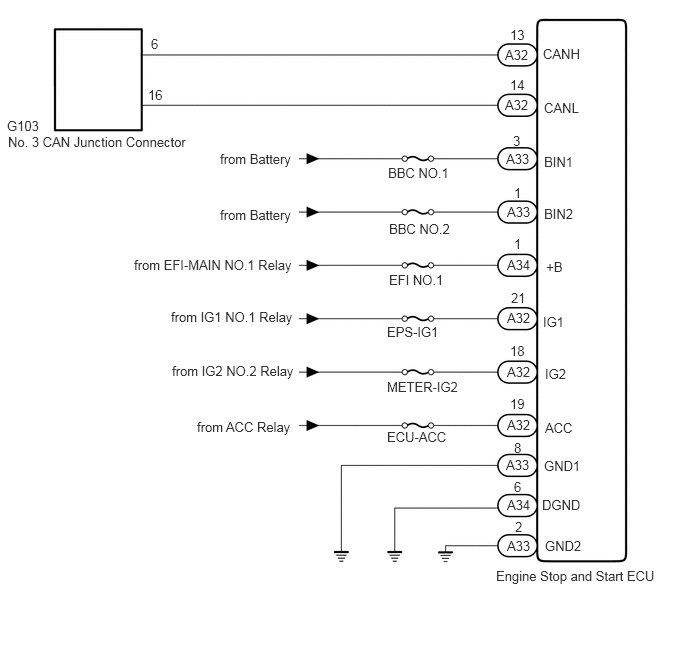

Engine Stop and Start ECU Communication Stop Mode [11/2018 - 12/2021]: Wiring Diagram

GTY854408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
