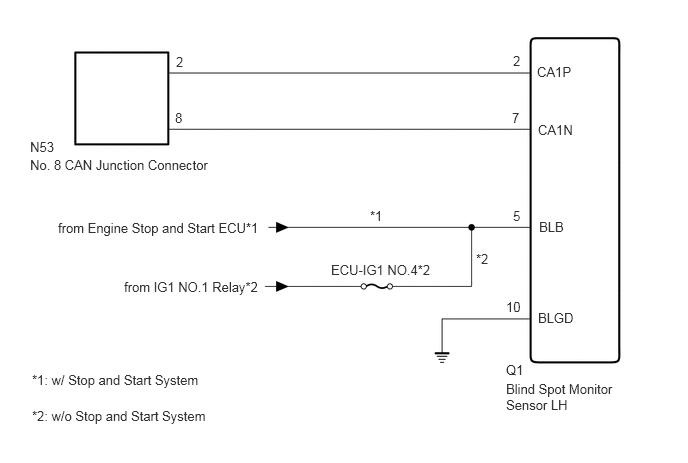

Blind Spot Monitor Sensor Communication Stop Mode [11/2018 - 12/2021]: Wiring Diagram

GTY861759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
