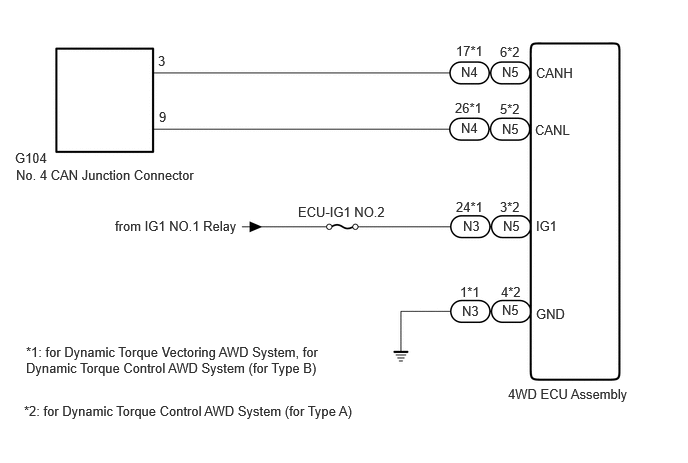

4WD Control ECU Communication Stop Mode [11/2018 - ]: Wiring Diagram

GTY1176799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
