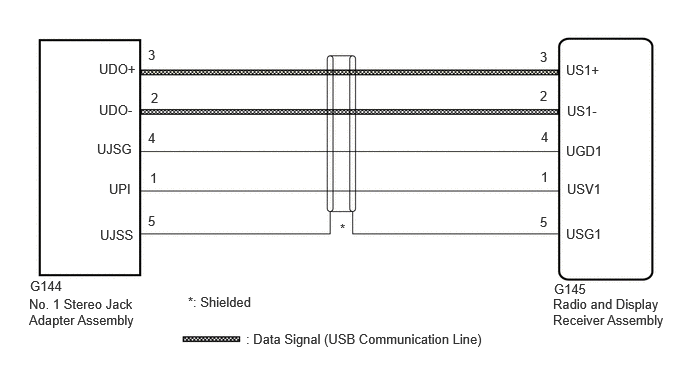

USB Audio System Recognition/Play Error [10/2022 - ]: Wiring Diagram

GTY1111166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
