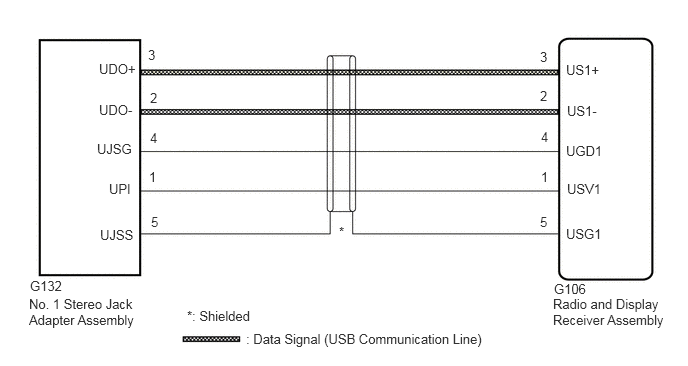

USB Audio System Recognition/Play Error [10/2019 - 10/2022]: Wiring Diagram

GTY842980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
