Taillight Relay Circuit [12/2018 -]: Wiring Diagram

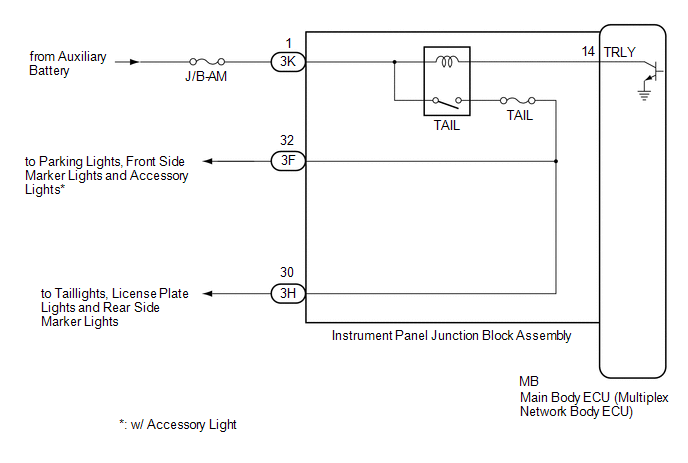

Fig 1: Taillight Relay Circuit Diagram

GTY899669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
