High Beam Headlight Circuit [11/2015 -]: Wiring Diagram

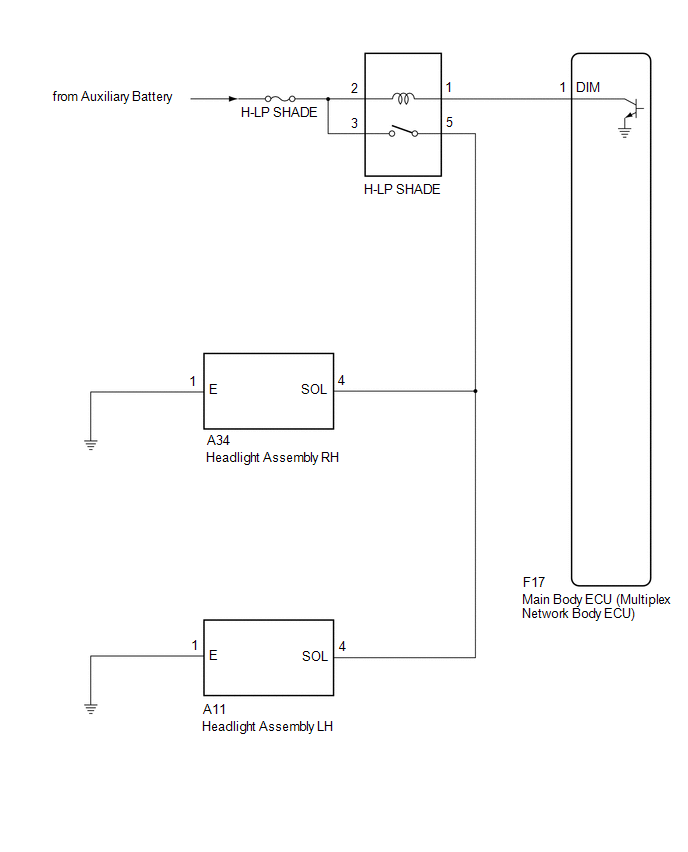

Fig 1: High Beam Headlight Circuit Diagram

GTY555439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
