Front Fog Light Circuit [11/2015 - 12/2018]: Wiring Diagram

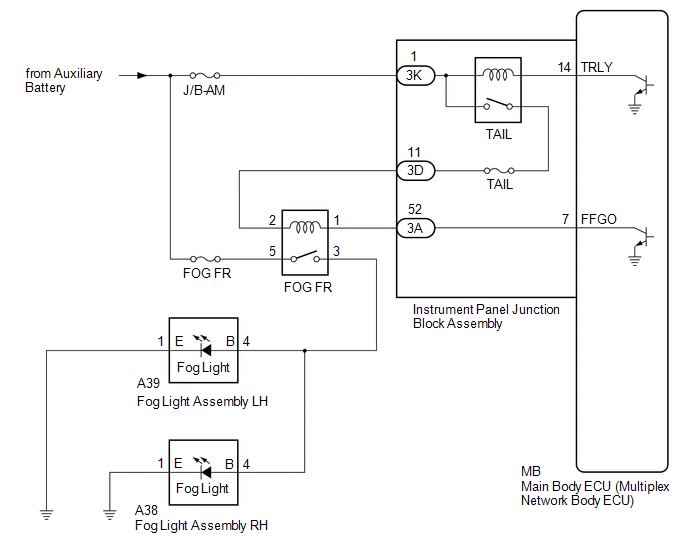

Fig 1: Front Fog Light Circuit Diagram

GTY610514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
