Seat Heater for Front Right Seat does not Operate [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. CLEAR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [04/2018 - ]

      Body Electrical > Air Conditioner > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Check for DTCs.

      Refer to DTC CHECK / CLEAR [04/2018 - ]

      Body Electrical > Air Conditioner > Trouble Codes

      OK

      DTC B14B5 and B14C0 are not output.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [04/2018 - ]

    Result:

    OK

    See step  3

  3. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Air Conditioner / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Air Conditioner > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Front Right Seat Heater Front seat RH side seat heater operation OFF or ON -

      Body Electrical > Air Conditioner > Active Test

      Tester Display
      Front Right Seat Heater

      OK

      The seat heater operates normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEAT HEATER SWITCH (RADIO AND DISPLAY RECEIVER ASSEMBLY). Refer to  REMOVAL [04/2018 - ]

    Result:

    NG

    See step  4

  4. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH
    1. Remove the front seatback heater assembly RH.

      Refer to REMOVAL [04/2018 - 08/2021]

    2. Inspect the front seatback heater assembly RH.

      Refer to INSPECTION [04/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEATBACK HEATER ASSEMBLY RH. Refer to  REMOVAL [04/2018 - 08/2021]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (IG POWER SUPPLY - FRONT SEAT CUSHION HEATER ASSEMBLY RH - BODY GROUND)
    1. Disconnect the R6 front seat cushion heater assembly RH connector.
      GTY939107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Front Seat Cushion Heater Assembly RH)
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      R6-1 (B1) - Body ground Engine switch on (IG) 11 to 14 V
      R6-1 (B1) - Body ground Engine switch off Below 1 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      R6-2 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - FRONT SEAT CUSHION HEATER ASSEMBLY RH)
    1. Reconnect the R6 front seat cushion heater assembly RH connector.
      GTY901682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)
    2. Disconnect the G37 air conditioning amplifier assembly connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      G37-16 (SHP+) - Body ground Engine switch on (IG) 5 to 13 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  7

  7. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Reconnect the G37 air conditioning amplifier assembly connector.
    2. Remove the air conditioning amplifier assembly with its connectors still connected.

      Refer to REMOVAL [04/2018 - 08/2020]

    3. Measure the voltage according to the value(s) in the table below.

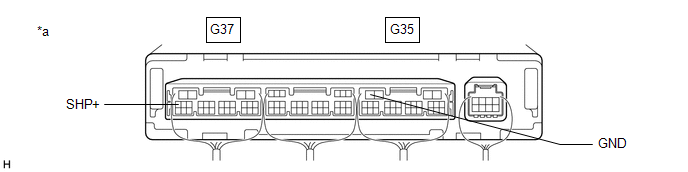

      GTY844552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Air Conditioning Amplifier Assembly)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      G37-16 (SHP+) - G35-4 (GND) Engine switch on (IG), seat heater switch (radio and display receiver assembly) on (LO) Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SEAT CUSHION HEATER ASSEMBLY RH. Refer to  REMOVAL [04/2018 - 08/2020]

    Result:

    NG

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [04/2018 - 08/2020]

  8. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - FRONT SEAT CUSHION HEATER ASSEMBLY RH)
    1. Disconnect the R6 front seat cushion heater assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G37-16 (SHP+) - R6-6 (SWR) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SEAT CUSHION HEATER ASSEMBLY RH. Refer to  REMOVAL [04/2018 - 08/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
